Physics 3 Marks Question

Laws of Thermodynamics · UP Board (UPMSP) STD 11 Science (UPMSP - English Medium). 11 questions.

Questions

3 Marks Question

Take a timed test

11 questions · self-marked practice — reveal the answer and mark yourself.

Question 13 Marks

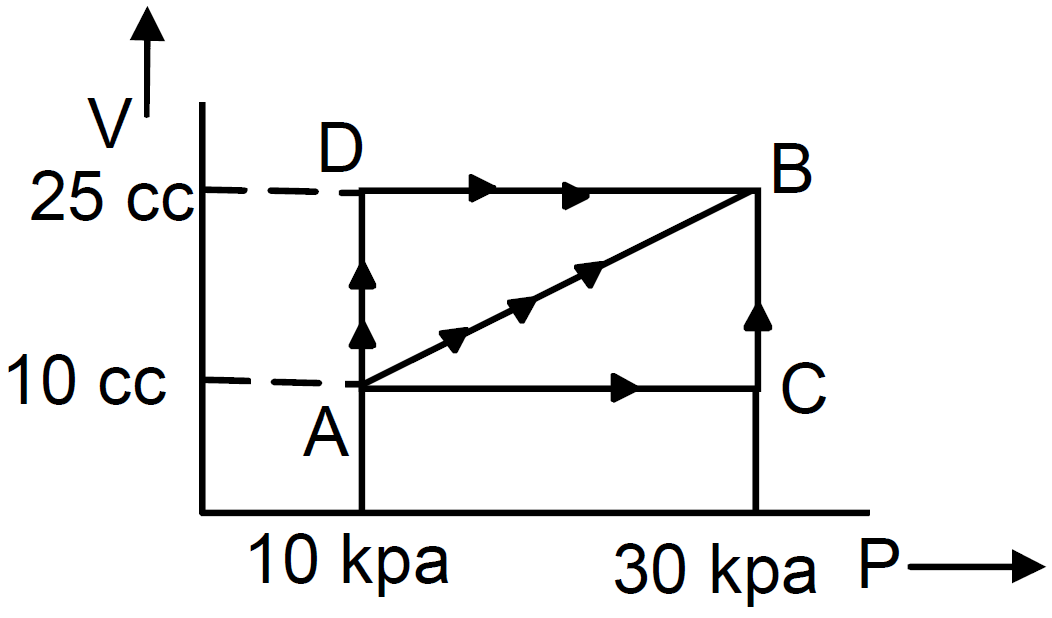

Figure. shows three paths through which a gas can be taken from the state A to the state B. Calculate the work done by the gas in each of the three paths.
Answer
In path ACB,

$W_{A C}+W_{B C}=0+p d v=30 \times 10^3(25-10) \times 10^{-6}=0.45 \mathrm{~J}$
In path $A B, W_{A B}=\frac{1}{2} \times(10+30) \times 10^3 \times 15 \times 10^{-6}=0.30 \mathrm{~J}$
In path $ A D B, W=W_{A D}+W_{D B}=10 \times 10^3(25-10) \times 10^{-6}+0=0.15 \mathrm{~J}$
View full question & answer→
Question 23 Marks
When an object cools down, heat is withdrawn from it. Does the entropy of the object decrease in this process? If yes, is it a violation of the second law of thermodynamics stated in terms of increase in entropy?
Answer
When an object cools down, heat is withdrawn from it. Hence, the entropy of the object decreases. But the decrease in entropy leads to the transfer of energy to the surrounding. The second law is not violated here, which states that entropy of the universe always increases as the net entropy increases.
Here,
Net entropy = Entropy of object + Entropy of surrounding
View full question & answer→
Question 33 Marks
Should the internal energy of a system necessarily increase if heat is added to it?
Answer
Change in internal energy of a system, $\Delta\text{U}=\text{C}_\upsilon\Delta\text{T}$ Here, $C_v$ = Specific heat at constant volume$\Delta\text{T}$ = Change in temperature.
If $\Delta\text{T}=0,$ then $\Delta\text{U}=0,$ i.e. in isothermal processes, where temperature remains constant, the internal energy doesn't change even on adding heat to the system. Thus, the internal energy of a system should not necessarily increase if heat is added to it.
View full question & answer→
Question 43 Marks

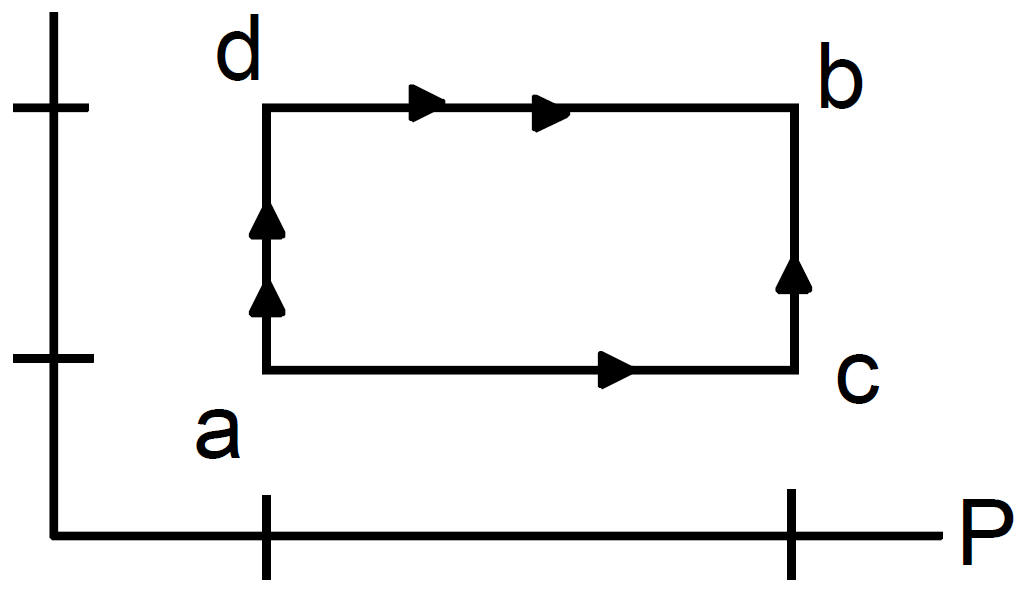

When a system is taken through the process abc shown in figure. 80J of heat is absorbed by the system and 30J of work is done by it. If the system does 10J of work during the process adc, how much heat flows into it during the process?
Answer

$\Delta\text{Q}=\Delta\text{U}+\Delta\text{W}$
In abc $\Delta\text{Q}=80\text{J},\ \Delta\text{W}=30\text{J}$
So, $\Delta\text{U}=(80-30)\text{J}=50\text{J}$
Now in adc, $\Delta\text{W}=10\text{J}$
So, $\Delta\text{Q}=10+50=60\text{J}\ [\therefore\Delta\text{U}=50\text{J}]$
View full question & answer→
Question 53 Marks
What should be the condition for the efficiency of a Carnot engine to be equal to 1?
Answer
Efficiency of Carnot engine, $\eta=\frac{\text{W}}{\text{Q}_1}=\frac{\text{Q}_1-\text{Q}_2}{\text{Q}_1}$ Here, W = Work done by the engine $Q_1$ = Heat abstracted from the source $Q_2$ = Heat transferred to the sink Thus, for$\eta=1,\text{W}=\text{Q}_1\ \text{or}\ \text{Q}_2=0,$ the total heat which is abstracted from the source gets converted into work.
View full question & answer→
Question 63 Marks

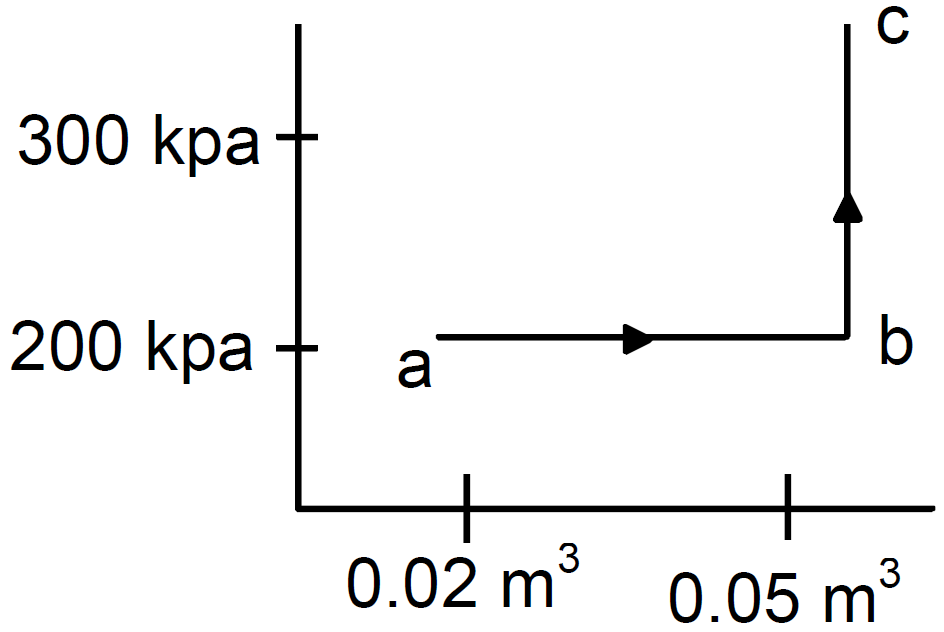

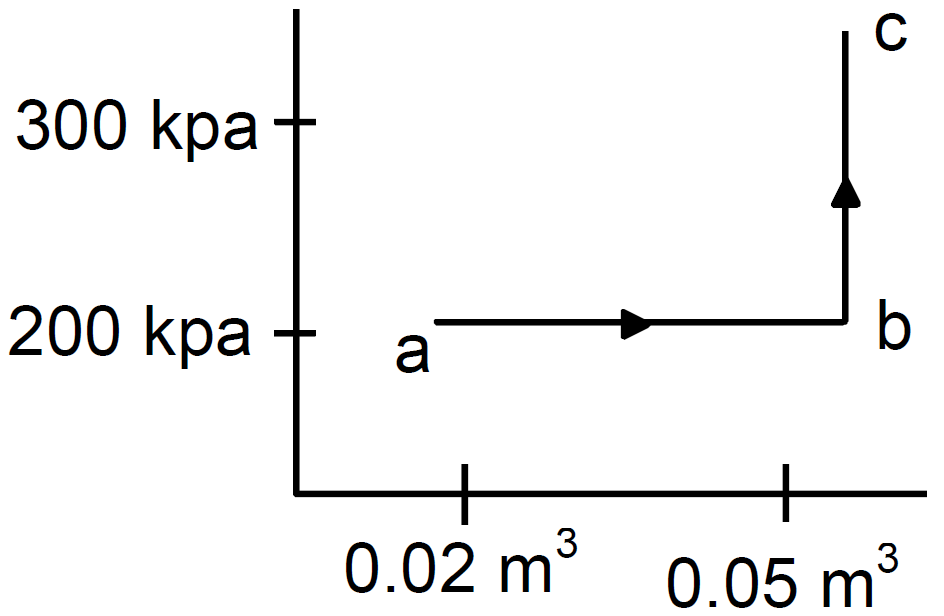

A substance is taken through the process abc as shown in figure. If the internal energy of the substance increases by 5000J and a heat of 2625cal is given to the system, calculate the value of J.
Answer

Now, $\Delta\text{Q}=(2625\times\text{J)J}$
$\Delta\text{U}=5000\text{J}$
From Graph $\Delta\text{W} = 200 \times 10^3 \times 0.03 = 6000\text{J.}$
Now, $\Delta\text{Q}=\Delta\text{W}+\Delta\text{U}$
$\Rightarrow2625\text{J}=6000+5000\text{J}$
$\text{J}=\frac{11000}{2625}=4.19\text{J/cal}$
View full question & answer→
Question 73 Marks
The final volume of a system is equal to the initial volume in a certain process. Is the work done by the system necessarily zero? Is it necessarily non-zero.
Answer
Work done by the system is neither necessarily zero nor necessarily non-zero. If in a certain process, the pressure P stays constant, then,$\Delta\text{W}=\text{P}\Delta\text{V}$
$\Rightarrow\text{W}=\text{P}(\text{V}_2-\text{V}_1)$
As $\text{V}_2=\text{V}_1$$\Rightarrow\text{W}=0$
(Initial volume, $V_1$ = Final volume, $V_2$) Hence, it is an isobaric process. Even if P = P(V), net work done will be zero if $V_2= V_1$. In this case, work done is zero. If the system goes through a cyclic process, then initial volume gets equal to the final volume after one cycle. But work done by the gas is non-zero.
View full question & answer→
Question 83 Marks
When we stir a liquid vigorously, it becomes warm. Is it a reversible process?
Answer
When we stir a liquid vigorously, we do work on it due to which its temperature rises and it becomes warm. To bring back the liquid to the initial temperature, heat needs to be extracted from it. But it is an irreversible process that cannot be brought back to the initial state by stirring the liquid again in the opposite direction.
View full question & answer→
Question 93 Marks
A cylinder containing a gas is lifted from the first floor to the second floor. What is the amount of work done on the gas? What is the amount of work done by the gas? Is the internal energy of the gas increased? Is the temperature of the gas increased?
Answer
As a cylinder is lifted from the first floor to the second floor, there is decrease in the atmospheric pressure on the gas and it expands. Therefore, some work is done by the gas on its surroundings. Work done on the gas is zero.
Work done by the gas, $\text{W}=\text{P}\Delta\text{V}$ (positive)
The increase in the internal energy and temperature of the system will depend on the types of the walls of the system (conducting or insulating).
View full question & answer→
Question 103 Marks
When we heat an object, it expands. Is work done by the object in this process ? Is heat given to the object equal to the increase in its internal energy?
Answer
When we heat an object, it expands, i.e. its volume increases. Work done by the system, $\Delta\text{W}=\text{P}\Delta\text{V}$ Using the first law of thermodynamics, we get,$\Delta\text{Q}=\Delta\text{U}+\Delta\text{W}$
Since the volume changes, $\Delta\text{W}$ has some non-zero positive value. Thus, heat given to the object is not equal to the increase in the internal energy of the system.
View full question & answer→
Question 113 Marks
Calculate the change in internal energy of a gas kept in a rigid container when 100J of heat is supplied to it.
Answer
Q = 100J We know, $\Delta\text{U}=\Delta\text{Q}-\Delta\text{W}$ Here since the container is rigid, $\Delta\text{V}=0,$$\Delta \text{V}=\text{V}_\text{f}-\text{V}_\text{t}=0$
Hence the $\Delta\text{W}=\text{P}\Delta\text{V}=0,$ So, $\Delta\text{U}=\Delta\text{Q}=100\text{J}$
View full question & answer→
