A circular coil of wire consisting of $100$ turns, each of radius $8.0\; cm$ carries a current of $0.40\, A$. What is the magnitude of the magnetic field $B$ at the centre of the coil?
Medium
Download our app for free and get startedPlay store
Number of turns on the circular coil, $n=100$

Radius of each turn, $r=8.0 \,cm =0.08 \,m$

Current flowing in the coil, $I=0.4\, A$

Magnitude of the magnetic field at the centre of the coil is given by the relation

$|B|=\frac{\mu_{0}}{4 \pi} \frac{2 \pi n I}{r}$

$\mu_{0}=$ Permeability of free space $=4 \pi \times 10^{-7} \,T\,m\, A ^{-1}$

$|B|=\frac{4 \pi \times 10^{-7}}{4 \pi} \times \frac{2 \pi \times 100 \times 0.4}{0.08}$

$=3.14 \times 10^{-4}\, T$

Hence, the magnitude of the magnetic field is $3.14 \times 10^{-4}\; T$

art

Download our app
and get started for free

Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*

Similar Questions

  • 1
    The direction of magnetic lines of forces close to a straight conductor carrying current will be
    View Solution
  • 2
    In a hydrogen atom, an electron of mass $m$ and charge $e$ revolves in an orbit of radius $r$ making $n$ revolutions per second. If the mass of hydrogen nucleus is $M$, the magnetic moment associated with the orbital motion of electron is
    View Solution
  • 3
    As shown in the figure, a current of $2\,A$ flowing in an equilateral triangle of side $4 \sqrt{3}\,cm$. The magnetic field at the centroid $O$ of the triangle is:

    (Neglect the effect of earth's magnetic field.)

    View Solution
  • 4

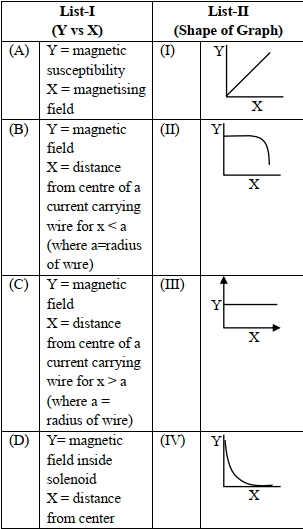

    Match List-$I$ with List-$II$
