A circular loop of area $0.01\,{m^2}$ carrying a current of $10\, A$, is held perpendicular to a magnetic field of intensity $0.1\,T$. The torque acting on the loop is......$N-m$
AIPMT 1994, Easy
Download our app for free and get startedPlay store
Given:

$A=0.01 \mathrm{~m}^2, \mathrm{I}=10 \mathrm{~A}, \mathrm{~B}=0.1 \mathrm{~T},$

$\theta=0^{\circ}$

To find:

Torque acting on the loop, $\tau$

Solution:

Magnetic moment, $M=(I)(A)$

The torque acting on the loop is given as, $\vec{\tau}=\vec{M} \times \vec{B}$

$\tau=M B \sin \theta $

$\tau=1 A B \sin 0$

$\tau=0\;\mathrm{Nm}$

art

Download our app
and get started for free

Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*

Similar Questions

  • 1
    An infinitely long hollow conducting cylinder with radius $R$ carries a uniform current along its surface. Choose the correct representation of magnetic field $(B)$ as a function of radial distance $(r)$ from the axis of cylinder
    View Solution
  • 2
    A circular coil ‘$A$’ has a radius $R$ and the current flowing through it is $I$. Another circular coil ‘$B$’ has a radius $2R$ and if $2I$ is the current flowing through it, then the magnetic fields at the centre of the circular coil are in the ratio of (i.e.${B_A}$ to ${B_B}$)
    View Solution
  • 3
    If a particle of charge ${10^{ - 12}}\,coulomb$ moving along the $\hat x - $ direction with a velocity ${10^5}\,m/s$ experiences a force of ${10^{ - 10}}\,newton$ in $\hat y - $ direction due to magnetic field, then the minimum magnetic field is
    View Solution
  • 4
    The magnetic field near a current carrying conductor is given by
    View Solution
  • 5
    Two infinite length wires are placed according to figure. Magnitude of magnetic field at  point $M$ which is mid point of line joining the two wire
    View Solution
  • 6
    A special metal $S$ conducts electricity without any resistance. A closed wire loop, made of $S$, does not allow any change in flux through itself by inducing a suitable current to generate a compensating flux. The induced current in the loop cannot decay due to its zero resistance. This current gives rise to a magnetic moment which in turn repels the source of magnetic field or flux. Consider such a loop, of radius $a$, with its center at the origin. A magnetic dipole of moment $m$ is brought along the axis of this loop from infinity to a point at distance $r \gg a)$ from the center of the loop with its north pole always facing the loop, as shown in the figure below.

    The magnitude of magnetic field of a dipole $m$, at a point on its axis at distance $r$, is $\frac{\mu_0}{2 \pi} \frac{m}{r^3}$, where $\mu_0$ is the permeability of free space. The magnitude of the force between two magnetic dipoles with moments, $m_1$ and $m_2$, separated by a distance $r$ on the common axis, with their north poles facing each other, is $\frac{k m_1 m_2}{r^4}$, where $k$ is a constant of appropriate dimensions. The direction of this force is along the line joining the two dipoles.

    ($1$) When the dipole $m$ is placed at a distance $r$ from the center of the loop (as shown in the figure), the current induced in the loop will be proportional to

    $(A)$ $\frac{m}{r^3}$ $(B)$ $\frac{m^2}{r^2}$ $(C)$ $\frac{m}{r^2}$ $(D)$ $\frac{m^2}{r}$

    ($2$) The work done in bringing the dipole from infinity to a distance $r$ from the center of the loop by the given process is proportional to

    $(A)$ $\frac{m}{r^5}$ $(B)$ $\frac{m^2}{r^5}$ $(C)$ $\frac{m^2}{r^6}$ $(D)$ $\frac{m^2}{r^7}$

    Give the answer or qution ($1$) and ($2$)

    View Solution
  • 7
    The magnetic field at the centre of an equilateral triangular loop of side $2\,L$ and carrying a current $i$ is
    View Solution
  • 8

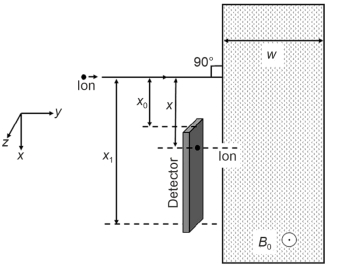

    A positive, singly ionized atom of mass number $A_M$ is accelerated from rest by the voltage $192 V$. Thereafter, it enters a rectangular region of width $w$ with magnetic field $B_0=0.1 \hat{k}$ Tesla, as shown in the figure. The ion finally hits a detector at the distance $x$ below its starting trajectory.
