Question
A circular wire-loop of radius a carries a total charge Q distributed uniformly over its length. A small length dL of the wire is cut off. Find the electric field at the centre due to the remaining wire.
✓
Answer
$\frac{\text{Charge}}{\text{Unit length}}=\frac{\text{Q}}{2\pi\text{a}}=\lambda;$ Charge of $\text{d}\ell=\frac{\text{Qd}\ell}{2\pi\text{a}}\text{C}$
Initially the electric field was ‘0’ at the centre. Since the element ‘dℓ’ is removed so, net electric field must $\frac{\text{K}\times\text{q}}{\text{a}^2}$
Where q = charge of element $\text{d}\ell$
$\text{E}=\frac{\text{Kq}}{\text{a}^2}$
$=\frac{1}{4\pi\in_0}\times\frac{\text{Q}\text{d}\ell}{2\pi\text{a}}\times\frac{1}{\text{a}^2}$
$=\frac{\text{Qd}\ell}{8\pi^2\in_0\text{a}^3}$
Initially the electric field was ‘0’ at the centre. Since the element ‘dℓ’ is removed so, net electric field must $\frac{\text{K}\times\text{q}}{\text{a}^2}$
Where q = charge of element $\text{d}\ell$
$\text{E}=\frac{\text{Kq}}{\text{a}^2}$
$=\frac{1}{4\pi\in_0}\times\frac{\text{Q}\text{d}\ell}{2\pi\text{a}}\times\frac{1}{\text{a}^2}$
$=\frac{\text{Qd}\ell}{8\pi^2\in_0\text{a}^3}$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions

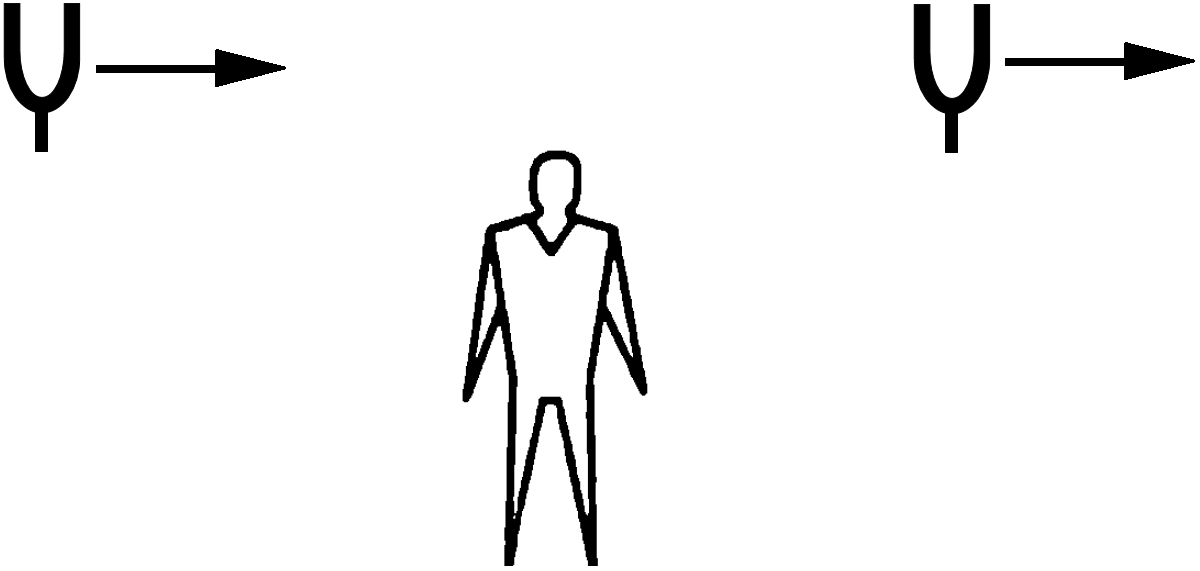

Figure, shows a person standing somewhere in between two identical tuning forks, each vibrating at 512Hz. If both the tuning fbrks move towards right at a speed of 5.5m/s, find the number of beats heard by the listener. Speed of sound in air = 330m/s.
