Electromagnetic Induction — Physics STD 11 Science — Question

Gujarat BoardEnglish MediumSTD 11 SciencePhysicsElectromagnetic Induction4 Marks
Question
A metallic loop is placed in a nonuniform magnetic field. Will an emf be induced in the loop?
✓

Answer

As the magnetic field is non uniform thus it will induce only small electric field in different directions so there would be no net current in the loop.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "Case study (4 Marks)" from Electromagnetic Induction→Electromagnetic Induction — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

The figure shows two identical triode tubes connected in parallel. The anodes are connected together and the cathodes are connected together. Show that the equivalent plate resistance is half the individual plate resistance, the equivalent mutual conductance is double the

individual mutual conductance and the equivalent amplification factor is the same as the individual amplification factor.
→
Read the passage given below and answer the following questions from (i) to (v). Measurement of Physical Quantity All engineering phenomena deal with definite and measured quantities and so depend on the making of the measurement. We must be clear and precise in making these measurements. To make a measurement, magnitude of the physical quantity (unknown) is compared. The record of a measurement consists of three parts, i.e. the dimension of the quantity, the unit which represents a standard quantity and a number which is the ratio of the measured quantity to the standard quantity.
  1. A device which is used for measurement of length to an accuracy of about $10”5m$, is:
  1. screw gauge
  2. spherometer
  3. vernier callipers
  4. Either (a) or (b)
  1. Which of the technique is not used for measuring time intervals?
  1. Electrical oscillator
  2. Atomic clock
  3. Spring oscillator
  4. Decay of elementary particles
  1. The mean length of an object is 5cm. Which of the following measurements is most accurate?
  1. 4.9cm
  2. 4.805cm
  3. 5.25 cm
  4. 5.4 cm 63.
  1. If the length of rectangle I = 105 cm, breadth b = 2.1 cm and minimum possible measurement by scale = 0.1 cm, then the area is
  1. $22.0cm^2$
  2. $21.0cm^2$
  3. $22.5cm^2$
  4. $21.5cm$
  1. Age of the universe is about $10^{10}$ yr, whereas the mankind has existed for $10^6$ yr. For how many seconds would the man have existed, if age of universe were 1day?
  1. 9.2s
  2. 10.2s
  3. 8.6s
  4. 10.5s
→

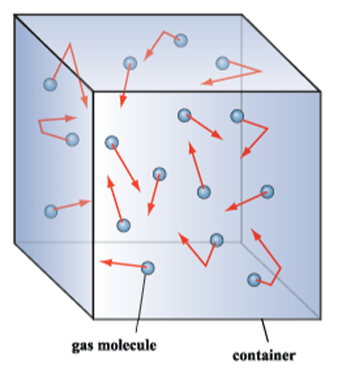

Gas molecules move in random motion inside the container. The pressure exerted by the gas is due to the continuous collision of the molecules against the walls of the container. Due to this continuous collision, the walls experience a continuous force which is equal to the total momentum imparted to the walls per second.

1.If the mass of each molecule is halved and speed is doubled, find the ratio of initial and final pressure:
(a) $1: 16$ (b) $1: 4$ (c) $1: 8$ (d) $1: 2$
2. The pressure exerted by the gases is:
(a) inversely proportional to the density
(b) inversely proportional to the square of the density
(c) directly proportional to the density
(d) directly proportional to the square of the density
3.If the force of attraction between the molecules suddenly disappears, then what will be the change in pressure:
(a) pressure increase
(b) pressure decrease
(c) pressure remains constant
(d) pressure falls
4. If the pressure of a given gas is halved at a certain temperature. what will be its volume:
(a) becomes triple (b) becomes double (c) remains constant (d) becomes half
OR
Dimension formula for $R$ ?
(a) $M ^1 L^2 T^2 K^{-1}$ (b) $M ^1 L^1 T^{-1}$ (c) $M ^{-1} L^0 T^1$ (d) $M ^1 L^2 T^{-2} K^{-1}$
→
The radio and TV programmes, telecast at the studio, reach our antenna by wave motion. Is it a mechanical wave or nonmechanical?
→
A car starts from rest on a half kilometer long bridge. The coefficient of friction between the tyre and the road is $1.0$. Show that one cannot drive through the bridge in less than $10s$.
→
Read the passage given below and answer the following questions from (i) to (v). Force of Friction on Connected Bodies When bodies are in contact, there are mutual contact forces satisfying the third law of motion. The component of contact force normal to the surfaces in contact is called normal reaction. The component parallel to the surfaces in contact is called friction
In the above figure, 8 kg and 6 kg are hanging stationary from a rough pulley and are about to move. They are stationary due to roughness of the pulley.
  1. Which force is acting between pulley and rope?
  1. Gravitational force
  2. Tension force
  3. Frictional force
  4. Buoyant force
  1. The normal reaction acting on the system is
  1. 8g
  2. 6g
  3. 2g
  4. 4g
  1. The tension is more on side having mass of:
  1. 8kg
  2. 6kg
  3. Same on both
  4. Nothing can be said
  1. The force of friction acting on the rope is:
  1. 20N
  2. 30N
  3. 40N
  4. 50N
  1. Coefficient of friction of the pulley is
  1. $\frac{1}{6}$
  2. $\frac{1}{7}$
  3. $\frac{1}{5}$
  4. $\frac{1}{4}$
→
Find the values of $\text{r}_\text{p},\ \mu$ and $\text{g}_\text{m}$ of a triode operating at plate voltage 200V and grid voltage -6. The plate characteristics are shown in the figure.
→
Why does thermionic emission not take place in non-conductors?
→
When the diode shows saturated current, dynamic place resistance is:
→
If an automobile engine is overheated, it is cooled by putting water on it. It is advised that the water should be put slowly with engine running. Explain the reason.
→
