A parallel plate capacitor is charged fully by using a battery. Then, without disconnecting the battery, the plates are moved further apart. Then,
KVPY 2009, Medium
Download our app for free and get started
(d)
As plates are moved far away further, capacity of capacitor $\left(C=\frac{\varepsilon_0 A}{d}\right)$ decreases.
As battery remains connected during this activity, potential difference between plates remains same.
So, the charge on plates $(Q=C V)$ decreases.
Also, energy of capacitor $\left(U=\frac{1}{2} C V^2\right)$ decreases as capacitance decreases. So, correct option is $( d )$.
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1A parallel - plate capacitor with plate area $A$ has separation $d$ between the plates. Two dielectric slabs of dielectric constant ${K}_{1}$ and ${K}_{2}$ of same area $\frac A2$ and thickness $\frac d2$ are inserted in the space between the plates. The capacitance of the capacitor will be given by :View Solution

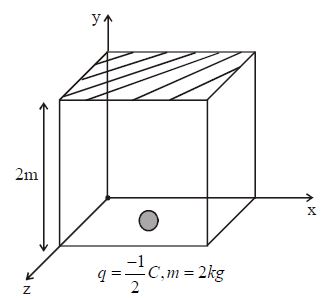

- 2Consider a gravity free container as shown. System is initially at rest and electric potential in the regon is $V = (y^3+2)\ J/C$. A ball of charge $q$ and mass $m$ is released from rest from base starts to move up due to electric field and collides with the shaded face as shown.If its speed just after collision is $1.5\ m/s$ and time for which ball is in contact with shaded face is $0.1\ sec$, find external force required to hold the container fixed in its position during collision assuming ball exerts constant force on wall during entire span of collision.......$N$View Solution
