A parallel plate capacitor of capacitance $C$ is connected to a battery and is charged to a potential difference $V$. Another capacitor of capacitance $2C$ is connected to another battery and is charged to potential difference $2V$. The charging batteries are now disconnected and the capacitors are connected in parallel to each other in such a way that the positive terminal of one is connected to the negative terminal of the other. The final energy of the configuration is
IIT 1995, Medium
Download our app for free and get started
(c) Total charge $ = (2C)\,(2V) + (C)\,( - V) = 3CV$
Common potential $ = \frac{{3CV}}{{3C}} = V$
Energy $ = \frac{1}{2}(3C)\,{(V)^2} = \frac{3}{2}C{V^2}$
Common potential $ = \frac{{3CV}}{{3C}} = V$
Energy $ = \frac{1}{2}(3C)\,{(V)^2} = \frac{3}{2}C{V^2}$
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1The potential at a point, due to a positive charge of $100\,\mu C$ at a distance of $9\,m$, isView Solution
- 2The energy of a charged capacitor is given by the expression ($q$= charge on the conductor and $C$ = its capacity)View Solution
- 3Uniform electric field of magnitude $ 100$ $V/m$ in space is directed along the line $y$ $=$ $3$ $+$ $x$. Find .........$V$ the potential difference between point $A (3, 1)$ $ \&$ $ B$ $ (1, 3)$View Solution
- 4Force of interaction between two co-axial short electric dipoles whose centres are $R$ distance apart varies asView Solution

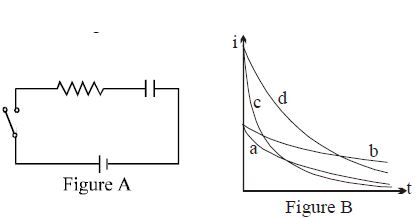

- 5After the switch shown in figure $A$ is closed, there is current $i$ through resistance $R$. Figure $B$ indicates current variation curves $a, b, c$ and $d$ for four sets of values of $R$ and capacitance $C$:View Solution
