Photometry — Physics STD 12 Science — Question

Gujarat BoardEnglish MediumSTD 12 SciencePhysicsPhotometry3 Marks
Question
A point source emitting light uniformly in all directions is placed 60cm above a table-top. The illuminance at a point on the table-top, directly below the source, is 15 lux. Find the illuminance at a point on the table-top 80cm away from the first point.
✓

Answer


given that $\text{E}_\text{a}=15\text{ lux}=\frac{\text{l}_0}{60^2}$

$\Rightarrow\text{l}_0=15\times(0.6)^2=5.4\text{ candela}$

 So, $\text{E}_\text{B}=\frac{\text{l}_0\cos\theta}{(\text{OB})^2}=\frac{5.4\times\Big(\frac{3}{5}\Big)}{1^2}=3.24\text{ lux}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "3 Marks Question" from Photometry→Photometry — all question types→Physics STD 12 Science question papers→Gujarat Board STD 12 Science question papers→Gujarat Board question paper generator→

Similar questions

An ac genrator is made from area of cross section $3 m^2$ and a coil of 100 turns which is rotated by a constant angular velocity of $60 rad / s$ in a magnetic field of 0.04 T . Resistance of the coil is $500 \Omega$ Calculate: (i) maxumum current obtained from the generator and (ii) maximum power dissipated in the coil.
→

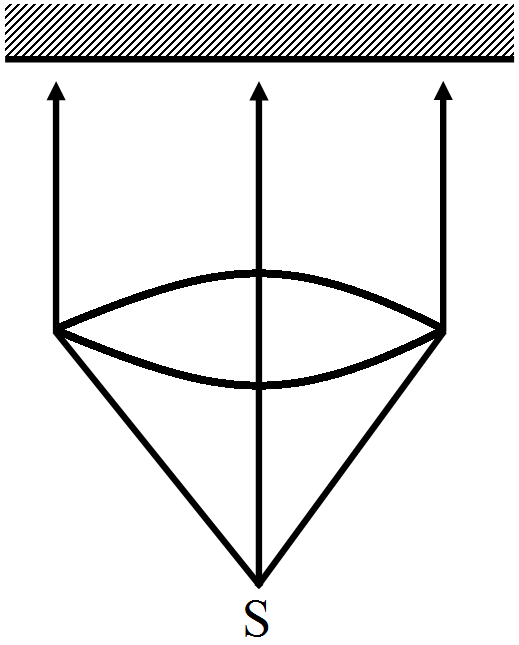

A totally reflecting, small plane mirror placed horizontally faces a parallel beam of light, as shown in the figure. The mass of the mirror is 20g. Assume that there is no absorption in the lens and that 30% of the light emitted by the source goes through the lens. Find the power of the source needed to support the weight of the mirror. Take g = 10m/s2.

→
In $H _2$ atom, $r_0$ is radius of first Bohr's orbit. What will be the radius of second orbit? What will be the radius of single ionized helium atom?
→
Two identical parallel plate capacitors A and B are connected to a battery of V volts with the switch S closed. The switch is now opened and the free space between the plates of the capacitors is filled with a dielectric of dielectric constant K. Find the ratio of the total electrostatic energy stored in both capacitors before and after the introduction of the dielectric.

→
A transformer has 50 turns in the primary and 100 in the secondary. If the primary is connected to a 220V DC supply, what will be the voltage across the secondary?
→

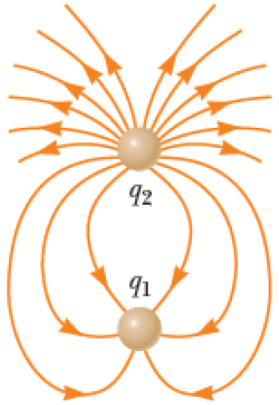

Consider the situation shown in figure. What are the signs of q1 and q2? If the lines are drawn in proportion to the charge, what is the ratio $\frac{\text{q}_1}{\text{q}_2}?$

→
In a typical Indian Bugghi (a luxury cart drawn by horses), a wooden plate is fixed on the rear on which one person can sit. A bugghi of mass 200kg is moving at a speed of 10km/h. As it overtakes a school boy walking at a speed of 4km/h, the boy sits on the wooden plate. If the mass of the boy is 25kg, what will be the new velocity of the bugghi?
→
The numerical value of ionization energy in eV equals the ionization potential in volts. Does the equality hold if these quantities are measured in some other units?
→
Explain use of juction diode as full wave rectifier.
→
An $\alpha$-particle collides with nucleus after passing through the potential V volt. Prove that distance of closest approach of particle of atomic number $Z$ to the nucleus will be $14.4( Z / V ) \ Å$.
(Given that : $1 / 4 \pi \varepsilon_0=9.0 \times 10^9$ Newton-meter $^2 /$ Coulomb $^2$ and $e=1.6 \times 10^{-19}$ Coulomb)
→
