A spherical portion has been removed from a solid sphere having a charge distributed uniformly in its volume in the figure. The electric field inside the emptied space is
Medium
Download our app for free and get started
$a=$ distance between center of both spheres By principle of superposition the net electric field at point $\mathrm{P}$
$\overrightarrow {\rm{E}} = \frac{{\overrightarrow {\rho {\rm{r}}} }}{{3{{\rm{e}}_0}}} - \frac{{{{\overrightarrow {\rho {\rm{r}}} }^\prime }}}{{3{{\rm{e}}_0}}}$
$\therefore \quad \overrightarrow{\mathrm{r}}-\overrightarrow{\mathrm{r}}^{\prime}=\overrightarrow{\mathrm{a}}$
$\therefore \overrightarrow {\rm{E}} = \frac{{\rho \overrightarrow {\rm{a}} }}{{3{ \in _0}}} = $ uniform
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1A parallel plate condenser is filled with two dielectrics as shown. Area of each plate is $A\;metr{e^2}$ and the separation is $t$ $metre$. The dielectric constants are ${k_1}$ and ${k_2}$ respectively. Its capacitance in farad will beView Solution

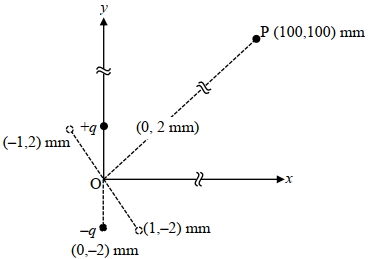

- 2An electric dipole is formed by two charges $+q$ and $-q$ located in xy-plane at $(0,2) \mathrm{mm}$ and $(0,-2) \mathrm{mm}$, respectively, as shown in the figure. The electric potential at point $\mathrm{P}(100,100) \mathrm{mm}$ due to the dipole is $V_0$. The charges $+q$ and $-q$ are then moved to the points $(-1,2) \mathrm{mm}$ and $(1,-2) \mathrm{mm}$, respectively. What is the value of electric potential at $P$ due to the new dipole?View Solution
