Heat Transfer. — Physics STD 11 Science — Question

Gujarat BoardEnglish MediumSTD 11 SciencePhysicsHeat Transfer.5 Marks
Question

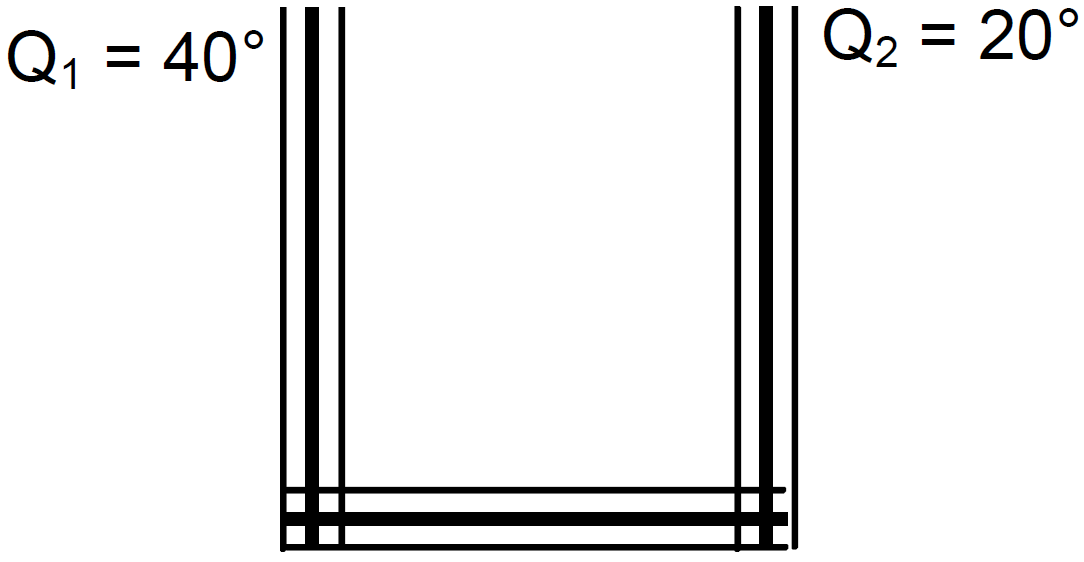

A steel frame $(\text{K}=45\text{Wm}^{-1}{^{\circ}}\text{C}^{-1})$of total length 60cm and cross sectional area $0.20cm^2$, forms three sides of a square. The free ends are maintained at $20^\circ C$ and $40^\circ C$. Find the rate of heat flow through a cross section of the frame.
✓

Answer



$\text{K}=45\text{w/m-}^\circ\text{C}$
$\ell=60\text{cm}=60\times10^{-2}\text{m}$
$\text{A}=0.2\text{cm}^2=0.2\times10^{-4}\text{m}^2$
Rate of heat flow,
$=\frac{\text{KA}(\theta_1-\theta_2)}{\ell}$
$=\frac{45\times0.2\times10^{-4}\times20}{60\times10^{-2}}$
$=30\times10^{-3}=0.03\text{w}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Heat Transfer.→Heat Transfer. — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

A body starts slipping down an incline and moves half meter in half second. How long will it take to move the next half meter?
→
Describe surface tension on the basis of molecular forces.
→
A cubical block of density $\rho$ iis floating on the surface of water. Out of its height L, fraction x is submerged in water. The vessel is in an elevator accelerating upward with acceleration a . What is the fraction immersed?
→
A ball of mass m, moving with a speed $2v_0$, collides inelastically $(e > 0)$ with an identical ball at rest. Show that:
For a general collision, the angle between the two velocities of scattered balls is less than $90°$
→
What is gravitational potential? Find the expression for gravitational potential energy. A $400kg$ satellite is in a circular orbit of radius $2R_E$ about the earth. Calculate the kinetic energy, potential energy and total energy of the satellite. Given that radius of Earth $R_E = 6.4 \times 10^6m$ and mass of Earth $M = 6 \times 10^{24}kg$.
→
A threaded rod with 12turns/ cm and diameter 1.18cm is mounted horizontally. A bar with a threaded hole to match the rod is screwed onto the rod. The bar spins at 216rev/ min. How long will it take for the bar to move 1.50cm along the rod?
→
A wire of length $10cm$ translates in a direction making an angle of $60°$ with its length. The plane of motion is perpendicular to a uniform magnetic field of $1.0T$ that exists in the space. Find the emf induced between the ends of the rod if the speed of translation is $20cm/s^{-1}$.
→
A pendulum bob of mass 80mg and carrying a charge of $2 \times 10^{-8}C$ is at rest in a uniform, horizontal electric field of $20 \mathrm{kVm}^{-1}$. Find the tension in the thread.
→
If the above capacitor is connected across a $6.0V$ battery, find:
  1. The charge supplied by the battery.
  2. The induced charge on the dielectric.
  3. The net charge appearing on one of the coated surfaces.
→

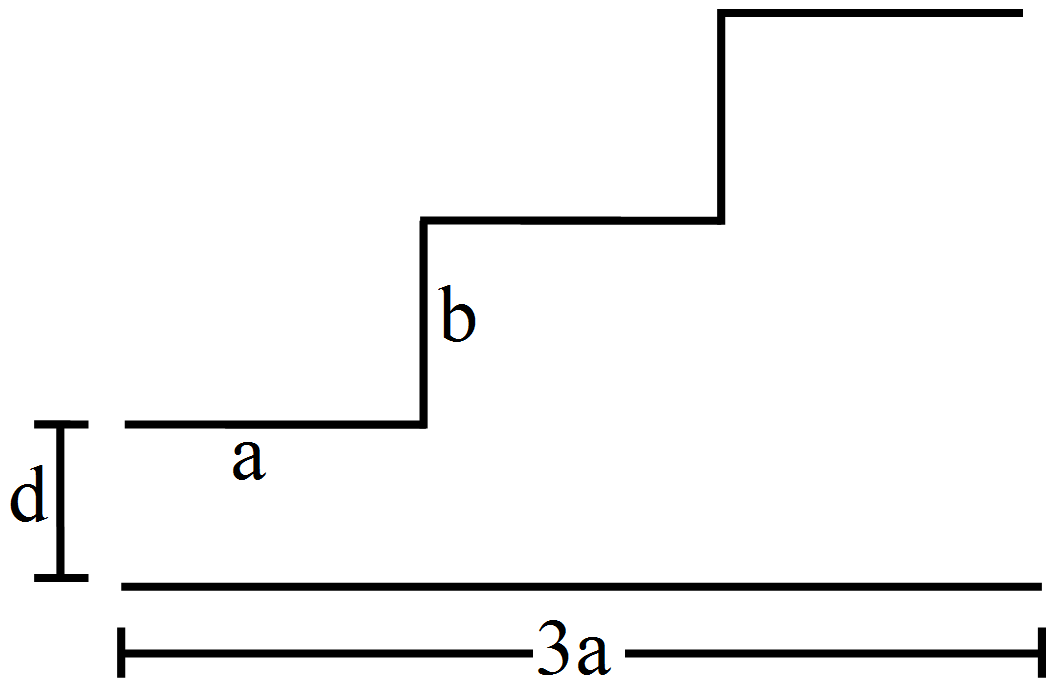

A capacitor is made of a flat plate of area A and a second plate having a stair-like structure as shown in figure. The width of each stair is a and the height is b. Find the capacitance of the assembly.
→
