A suspension bridge is to be built across valley where it is know… - Vidyadip

MCQ

A suspension bridge is to be built across valley where it is known that the wind can gust at $5 \,s$ intervals. It is estimated that the speed of transverse waves along the span of the bridge would be $400 \,m / s$. The danger of resonant motions in the bridge at its fundamental frequency would be greater if the span had a length of .......... $m$

A
$2000$
✓
$1000$
C
$400$
D
$80$

✓

Answer

Correct option: B.

$1000$

b
(b)

$f=\frac{1}{5}=0.2\,Hz$

$\quad \text { speed }=400\,m / s$

$\lambda=\frac{\text { speed }}{f}=\frac{400}{0.2}=2000\,m .$

for $\frac{\lambda}{2}=L$, resonarce will be greatest. $L=\frac{2000\,m}{2}=1000\,m$.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q (1 Marks)" from 14. waves and sound→14. waves and sound — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

A particle is moving with velocity $\vec v = K(y\hat i + x\hat j)$ where $K$ is a constant. The general equation for its path is

A system of two blocks of masses $m =2 \; kg$ and $M=8 \; kg$ is placed on a smooth table as shown in figure. The coefficient of static friction between two blocks is $0.5$. The maximum horizontal force $F$ that can be applied to the block of mass $M$ so that the blocks move together will be $\dots \; N$

A uniform rope of mass $M$ and length $L$ is fixed at its upper end vertically from a rigid support. Then the tension in the rope at the distance $l$ from the rigid support is $x$

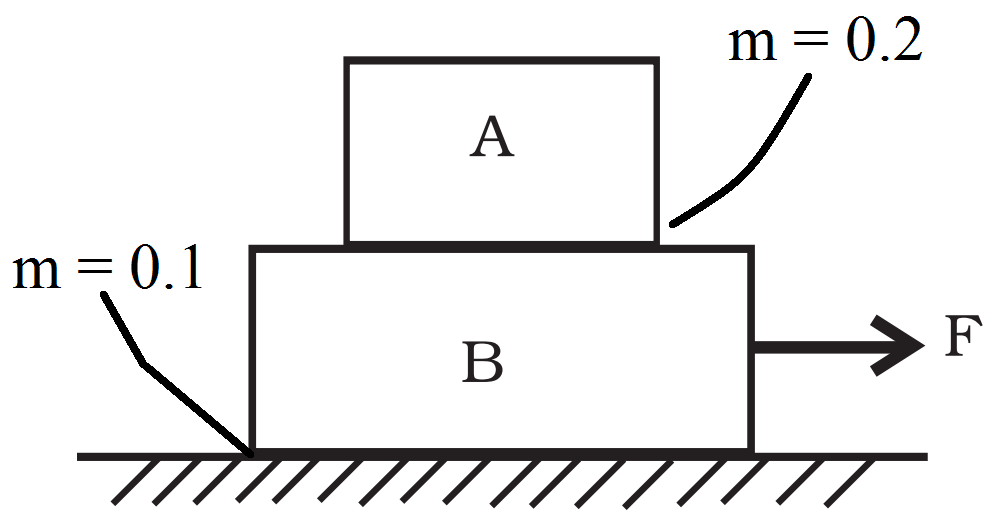

In the $co-$efficient of friction between the floor and the body $B$ is $0.1.$ The $co-$efficient of friction between the bodies $B$ and $A$ is $0.2. \ A$ force $F$ is applied as shown on $B.$ The mass of $A$ is $m^2$ and of $B$ is $m.$ Which of the following statements are true?
