A transparent paper (refractive index = 1.45) of thickness 0.02mm is pasted on one of the slits of a Young's double slit experiment which uses monochromatic light of wavelength 620nm. How many fringes will cross through the centre if the paper is removed?
Download our app for free and get started
Given that, $\mu=1.45,$ t = 0.02mm $= 0.02 × 10^{-3}m$ and $\lambda=620\text{nm}=620\times10^{-9}\text{m}$
We know, when the transparent paper is pasted in one of the slits, the optical path changes by $(\mu-1)\text{t}.$
Again, for shift of one fringe, the optical path should be changed by $\lambda.$
So, no. of fringes crossing through the centre is given by,
$\text{n}=\frac{(\mu-1)\text{t}}{\lambda}=\frac{0.45\times0.02\times10^{-3}}{620\times10^{-9}}=14.5$
We know, when the transparent paper is pasted in one of the slits, the optical path changes by $(\mu-1)\text{t}.$
Again, for shift of one fringe, the optical path should be changed by $\lambda.$
So, no. of fringes crossing through the centre is given by,
$\text{n}=\frac{(\mu-1)\text{t}}{\lambda}=\frac{0.45\times0.02\times10^{-3}}{620\times10^{-9}}=14.5$
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions

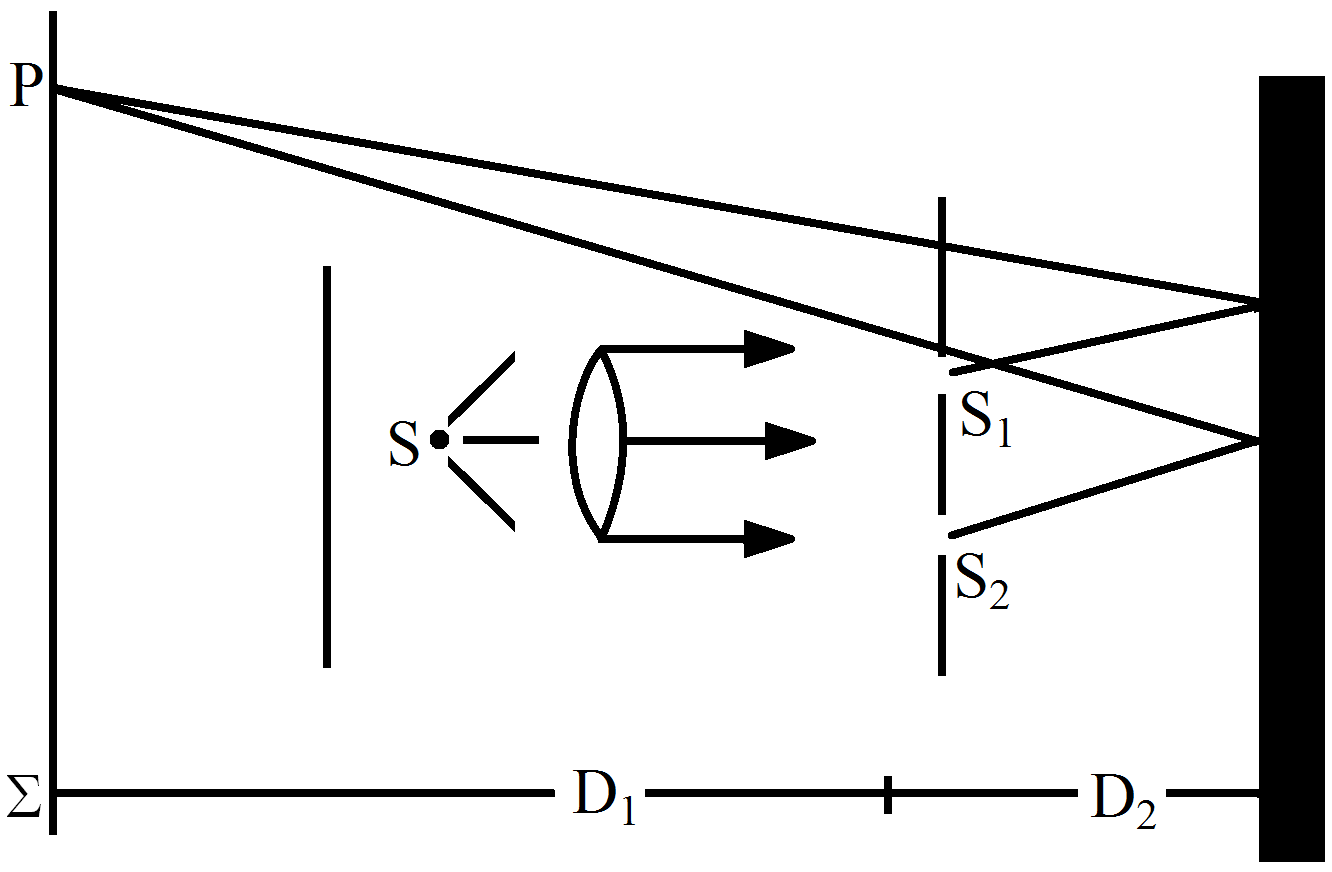

- 1A double slit $S_1-S_2$ is illuminated by a coherent light of wavelength $\lambda$. The slits are separated by a distance $d$. A plane mirror is placed in front of the double slit at a distance $D_1$ from it and a screen $\sum$ is placed behind the double slit at a distance $D_2$ from it (figure $17-E_2$ ). The screen E receives only the light reflected by the mirror. Find the fringe-width of the interference pattern on the screen.View Solution
