Waves — Physics STD 11 Science — Question

Rajasthan BoardEnglish MediumSTD 11 SciencePhysicsWaves5 Marks
Question
A wire stretched between two rigid supports vibrates in its fundamental mode with a frequency of 45Hz. The mass of the wire is 3.5 × 10–2kg and its linear mass density is 4.0 × 10–2kg m–1. What is
  1. The speed of a transverse wave on the string,
  2. The tension in the string?
✓

Answer

  1. Mass of the wire, m = 3.5 × 10–2kg

Linear mass density, $\mu=\frac{\text{m}}{\text{l}}=4.0\times10^2\text{kg m}^{-1}$

Frequency of vibration, v = 45Hz

$\therefore$ length of the wire, $\text{l}=\frac{\text{m}}{\mu}=\frac{3.5\times10^{-2}}{4. 0\times10^{-2}}=0.875\text{m}$

The wavelength of the stationary wave $(\lambda)$ is related to the length of the wire by the relation:

$\lambda=\frac{2\text{l}}{\text{m}}$

where,

n = Number of nodes in the wire

For fundamental node, n = 1:

$\lambda=2\text{l}$

$\lambda=2\times0.875=1.75\text{m}$

The speed of the transverse wave in the string is given as:

$\text{v}=\text{v}\lambda=45\times1.75=78.75\text{m/s}$

  1. The tension produced in the string is given by the relation:

$\text{T}=\text{v}^2\mu$

$=(78.75)^2\times4.0\times10^{-2}=248.06\text{N}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Waves→Waves — all question types→Physics STD 11 Science question papers→Rajasthan Board STD 11 Science question papers→Rajasthan Board question paper generator→

Similar questions

(i) Whatement is position vector $\cos ^2 \alpha+\cos ^2 \beta+\cos ^2 \gamma=1$(ii) Explain the displacvector
→
Explain gravitational potential at a point in gravitational field. Give relation between gravitational field intensity and gravitational potential.
→
A rain drop of radius 2 mm falls from a height of 500m above the ground. It falls with decreasing acceleration (due to viscous resistance of the air) untill at half its original height, it attains its maximum (terminal) speed, and moves with uniform speed thereafter. What is the work done by the gravitational force on the drop in the first and second half of its journey? What is the work done by the resistive force in the entire journey if its speed on reaching the grounds is $10 ms^{-1} ?$
→
(n - 1) equal point masses each of mass m are placed at the vertices of a regular n-polygon. The vacant vertex has a position vector a with respect to the centre of the polygon. Find the position vector of centre of mass.
→
A uniform rod is made to lean between a rough vertical wall and the ground. Show that the least angle at which the rod can be leaned without slipping is given by
$\theta=\tan_{-1}\Big(\frac{1-\mu_1\mu_2}{2\mu_2}\Big)$
where $\mu_1$ and $\mu_2$ stand for the coefficient of friction between (i) the rod and the wall and (ii) the rod and the ground.
→

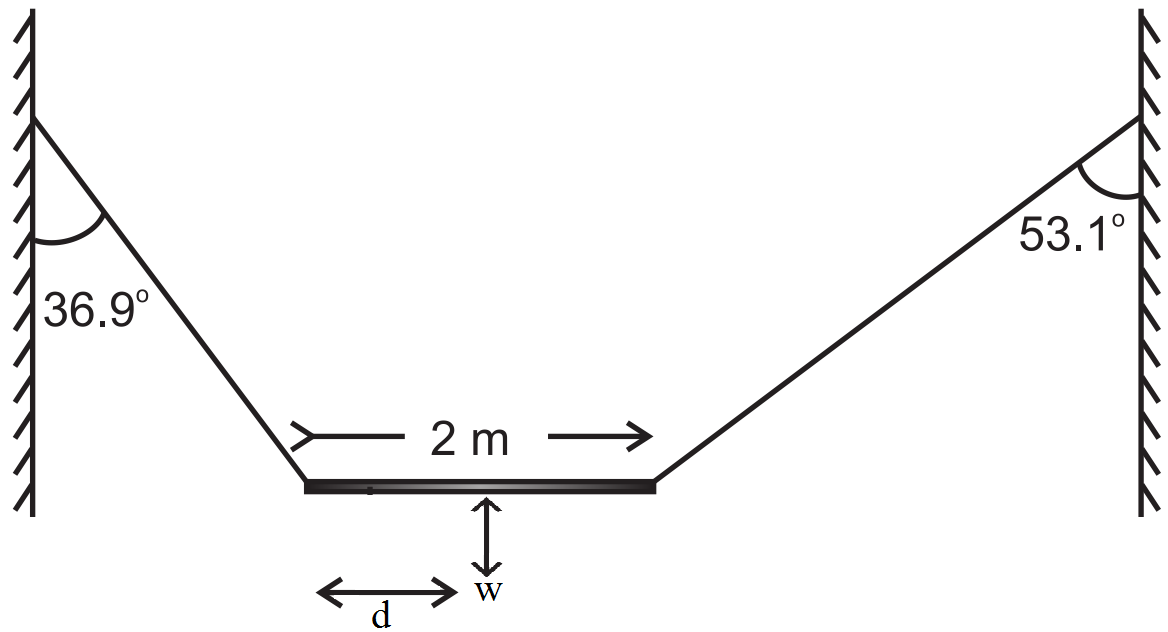

A non-uniform bar of weight W is suspended at rest by two strings of negligible weight as shown in. The angles made by the strings with the vertical are 36.9° and 53.1° respectively. The bar is 2m long. Calculate the distance d of the centre of gravity of the bar from its left end.

→
