List four characteristics of the images formed by plane mirrors.

Draw ray diagrams showing the image formation by a convex lens when an object is placed:
At the focus of the lens.

A student focuses the image of a well illuminated distant object on a screen using a convex lens. After that he gradually moves the object towards the lens and each time focuses its image on the screen by adjusting the lens.

1. In which direction-towards the screen or away from the screen, does he move the lens?
2. What happens to the size of the image-does it decrease or increase?
3. What happens to the image on the screen when he moves the object very close to the lens?

An object is placed at the following distance from a convex lens of focal length 15cm:

1. 35cm
2. 30cm
3. 20cm
4. 10cm

Which position of the object will produce:

1. A magnified real image?
2. A magnified virtual image?
3. A diminished real image?
4. An image of same size as the object?

An object of height 2.5 cm is placed at a distance of 15 cm from the optical centre ‘O' of a convex lens of focal length 10 cm. Draw a ray diagram to find the position and size of the image formed. Mark optical centre ‘O', principal focus F and height of the image on the diagram.

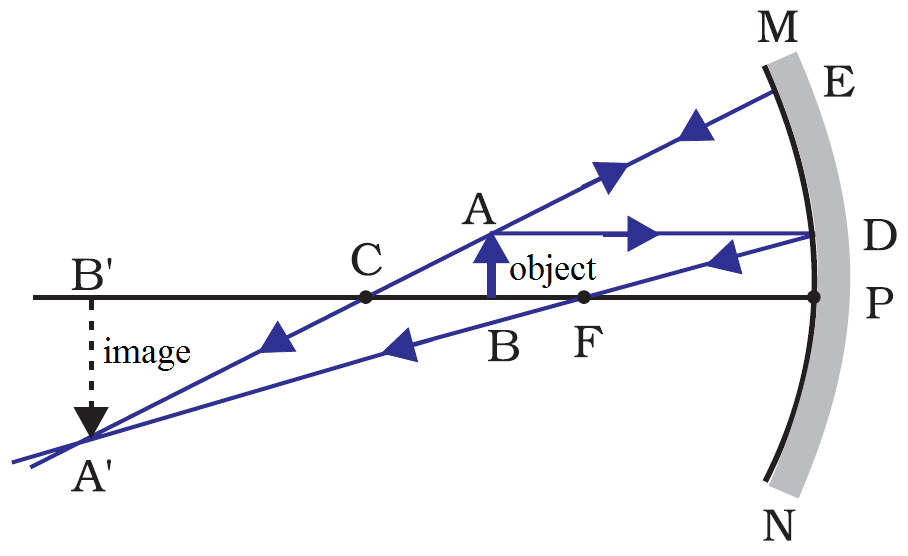

A concave mirror produces three times magnified real image of an object placed at 10 cm in front of it. Where is the image located?

Define:

1. Principal focus of a concave mirror.
2. Focal length of a concave mirror.

A student focuses the image of a candle flame, placed at about 2 m from a convex lens of focal length 10 cm, on a screen. After that he moves gradually the flame towards the lens and each time focuses its image on the screen.

1. In which direction does he move the lens to focus the flame on the screen?
2. What happens to the size of the image of the flame formed on the screen?
3. What difference is seen in the intensity (brightness) of the image of the flame on the screen?
4. What is seen on the screen when the flame is very close (at about 5 cm) to the lens?
