An open-ended U-tube of uniform cross-sectional area contains water (density $10^3 kg m ^{-3}$ ). Initially the water level stands at $0.29 m$ from the bottom in each arm. Kerosene oil (a water-immiscible liquid) of density $800 kg m ^{-3}$ is added to the left arm until its length is $0.1 m$, as shown in the schematic figure below. The ratio $\left(\frac{h_1}{h_2}\right)$ of the heights of the liquid in the two arms is-
IIT 2020, Medium
Download our app for free and get started
$h _1+ h _2=0.29 \times 2+0.1$
$h _1+ h _2=0.68$ $. . . . . . .(2)$
$\Rightarrow P _0+\rho_{ k } g (0.1)+\rho_\pi g \left( h _1-0.1\right)\left[\rho_{ k }=\text { density of kerosene } \ \rho_{ w }=\text { density of water }\right]$
$-\rho_\pi gh _2= P _0$
$\Rightarrow \rho_{ k } g (0.1)+\rho_\pi gh _1-\rho_\pi g \times(0.1)$
$=\rho_\pi gh _2$
$\Rightarrow 800 \times 10 \times 0.1+1000 \times 10 \times h _1$
$-1000 \times 10 \times 0.1=1000 \times 10 \times h _2$
$\Rightarrow 10000\left( h _1- h _2\right)=200$
$\Rightarrow h _1- h _2=0.02$ $. . . . . . .(2)$
$\Rightarrow h_1=0.35$
$\Rightarrow h_2=0.33$
So, $\frac{ h _1}{ h _2}=\frac{35}{33}$
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions

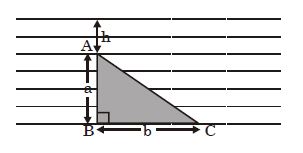

- 1A vertical triangular plate $ABC$ is placed inside water with side $BC$ parallel to water surface as shown. The force on one surface of plate by water is (density of water is $\rho $ and atmospheric pressure $P_0$ )View Solution
- 2Two solid spheres $A$ and $B$ of equal volumes but of different densities $d_A$ and $d_B$ are connected by a string. They are fully immersed in a fluid of density $d_F$. They get arranged into an equilibrium state as shown in the figure with a tension in the string. The arrangement is possible only ifView Solution
$(A)$ $d_Ad_F$ $(B)$ $d_B > d_F$ $(C)$ $d_A>d_F$ $(D)$ $d_A+d_B=2 d_F$
- 3Given below are two statements:View Solution
Statement $I :$ Pressure in a reservoir of water is same at all points at the same level of water.
Statement $II :$ The pressure applied to enclosed water is transmitted in all directions equally.
In the light of the above statements, choose the correct answer from the options given below:
- 4The bulk modulus of a liquid is $3 \times 10^{10}\, Nm ^{-2}$. The pressure required to reduce the volume of liquid by $2 \%$ is ........ $\times 10^{8}\; Nm ^{-2}$View Solution

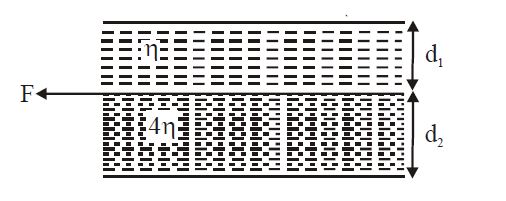

- 5A thin plate separates two liquids of coefficients of viscosity $\eta$ and $4\ \eta$ kept between two fixed plates as shown. If plate has to be pulled by applying minimum force then $\frac{d_2}{d_1}$ isView Solution
