Consider a sphere of radius $R$ having charge $q$ uniformly distributed inside it. At what minimum distance from its surface the electric potential is half of the electric potential at its centre?
Medium
Download our app for free and get started
(d)
$V_c=\frac{3 k Q}{2 R}$
$V_s=\frac{k Q}{R+x}=\frac{3 k Q}{4 R}$
$4 R=3 R+3 x$
$3 x=R$
$x=\frac{R}{3}$
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1Three identical small electric dipoles are arranged parallel to each other at equal separation a as shown in the figure. Their total interaction energy is $U$. Now one of the end dipole is gradually reversed, how much work is done by the electric forces.View Solution
- 2View SolutionA sheet of aluminium foil of negligible thickness is introduced between the plates of a capacitor. The capacitance of the capacitor
- 3The capacitor of capacitance $C$ in the circuit shown is fully charged initially resistance is $R$. After the switch $S$ is closed, the time taken to reduce the stored energy in the capacitor to half its initial value isView Solution
- 4View SolutionIn the figure a capacitor is filled with dielectrics. The resultant capacitance is
- 5The capacitor of capacitance $4\,\mu F$ and $6\,\mu F$ are connected in series. A potential difference of $500\;volts$ applied to the outer plates of the two capacitor system. Then the charge on each capacitor is numericallyView Solution

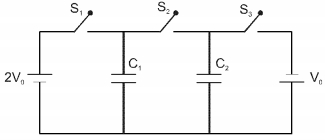

- 6In the circuit shown in the figure, there are two parallel plate capacitors each of capacitance $C$. The switch $S _1$ is pressed first to fully charge the capacitor $C_1$ and then released. The switch $S_2$ is then pressed to charge the capacitor $C _2$. After some time, $S _2$ is released and then $S _3$ is pressed. After some time.View Solution
