Dual Nature of Radiation and Matter — Physics STD 12 Science — Question

Rajasthan BoardEnglish MediumSTD 12 SciencePhysicsDual Nature of Radiation and Matter5 Marks
Question
Crystal diffraction experiments can be performed using $X-$rays, or electrons accelerated through appropriate voltage. Which probe has greater energy? $($For quantitative comparison, take the wavelength of the probe equal to $1 \mathring A ,$ which is of the order of inter$-$atomic spacing in the lattice$) (m^e = 9.11 \times 10^{–31} \ kg).$
✓

Answer

Wavelength of the probe $=1\mathring{\text{A}}$
Mass of electron. $me = 9.11 \times 10^{-31} \ kg$
Energy of photon, $\text{E}=\text{hv}=\frac{\text{hc}}{\lambda}$
$=\frac{{6.63}\times10^{-34}\times3\times10^8}{10^{-10}}\text{J}$
$= 19.89 \times 10^{-16} J$
$\text{i.e., E}=\frac{19.89\times10^{-16}}{1.6\times10^{-19}}\text{eV}=12.43\ \text{keV}$
For the case of electron,
$\lambda=\frac{\text{h}}{\sqrt{2\text{mE}}}$
$\Rightarrow\ \ \sqrt{2\text{mE}}=\frac{\text{h}}{\lambda}$
$\Rightarrow\ \ 2\text{mE}=\frac{\text{h}^2}{\lambda^2}$
$\Rightarrow\ \ \text{E}=\frac{\text{h}^2}{\text{2m}\lambda^2}$
$\Rightarrow\ \ \text{E}=\frac{(6.63\times10^{-34})^2}{2\times9.11\times10^{-31}\times10^{-20}}\text{J}$
$=\frac{(6.63\times10^{-34})^2}{2\times9.11\times10^{-31}\times10^{-20}\times1.6\times10^{-19}}\text{eV}$
i.e., $E = 150.8 eV$
From the above calculations, we can see that, for the same given wavelength, kinetic energy of a photon is much greater than that of electron.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Dual Nature of Radiation and Matter→Dual Nature of Radiation and Matter — all question types→Physics STD 12 Science question papers→Rajasthan Board STD 12 Science question papers→Rajasthan Board question paper generator→

Similar questions

Find the accelerations $a_1, a_2, a_3$ of the three blocks shown in figure if a horizontal force of $10N$ is applied on:
  1. $2\ kg$ block.
  2. $3\ kg$ block.
  3. $7\ kg$ block. Take $g = 10m/s^2.$
→
Draw a simple circuit of a $CE$ transistor amplifier. Explain its working. Show that the voltage gain $, A_V,$ of the amplifier is given by $\text{A}_{V} = - \frac{\beta_{ac}\text{R}_{L}}{\text{r}_{i}},$ where $ \beta_{ac}$ is the current gain $, R_L$ is the load resistance and $r_i$ is the input resistance of the transistor. What is the significance of the negative sign in the expression for the voltage gain?
→
A compound microscope consists of an objective lens of focal length 2.0 cm and an eyepiece of focal length 6.25 cm separated by a distance of 15 cm. How far from the objective should an object be placed in order to obtain the final image at (a) the least distance of distinct vision (25 cm), and (b) at infinity? What is the magnifying power of the microscope in each case?
→
A capacitor is made of a flat plate of area A and a second plate having a stair-like structure as shown in figure. The width of each stair is a and the height is b. Find the capacitance of the assembly.
→
Consider the situation of the previous problem:
  1. Find the tension in the string in equilibrium.
  2. Suppose the ball is slightly pushed aside and released. Find the time period of the small oscillations.
→
Explain direct current direct emf and draw their graphs. Define alternating current and explain in detail.
→
Two small balls, each of mass m are connected by a light rigid rod of length L. The system is suspended from its centre by a thin wire of torsional constant k. The rod is rotated about the wire through an angle $\theta_0$ and released. Find the tension in the rod' as the system passes through the mean position.
→

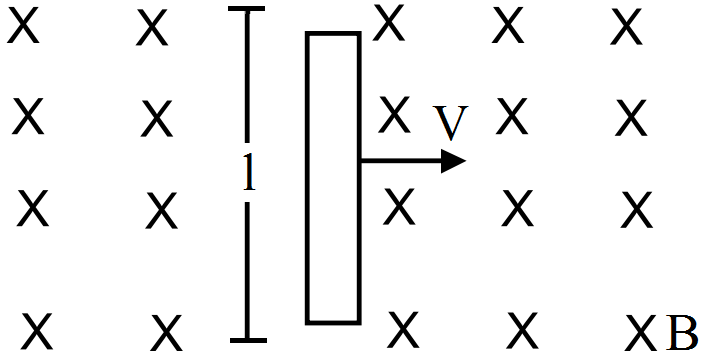

A conducting wire of length l, lying normal to a magnetic field B, moves with a velocity v, as shown in the figure.
