Question
Draw a plot showing the variation of binding energy per nucleon with mass number A. Write two important conclusions which you can draw from this plot. Explain with the help of this plot, the release in energy in the processes of nuclear fusion and fission.
✓

Answer


Binding energy per nucleon as a function of mass number A.
Two important conclusions from this graph are:
i. Nuclear forces non-central and short ranged force.
ii. Nuclear forces between proton-neutron and neutron-neutron are strong and attractive in nature.
Explanation of Nuclear Fission: When a heavy nucleus (A ≥ 235 say) breaks into two lighter nuclei (nuclear fission), the binding energy per nucleon increases i.e, nucleons get more tightly bound. This implies that energy would be released in nuclear fission.
Explanation of Nuclear Fusion: When two very light nuclei (A  ≤ 10) join to form a heavy nucleus, the binding is energy per nucleon of fused heavier nucleus more than the binding energy per nucleon of lighter nuclei, so again energy would be released in nuclear fusion.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "3 Marks Question" from MODEL PAPER 9→MODEL PAPER 9 — all question types→Physics STD 12 Science question papers→Rajasthan Board STD 12 Science question papers→Rajasthan Board question paper generator→

Similar questions

Does a nucleus lose mass when it suffers gamma decay?
→
A long charged cylinder of linear charge density $+\lambda_1$ is surrounded by a hollow coaxial conducting cylinder of linear charge density $-\lambda_2$. Use Gauss’s law to obtain expressions for the electric field at a point (i) in the space between the cylinders, and (ii) outside the larger cylinder.
→
Are matter waves electromagnetic?
→
The nucleus $^{235}_{92}\text{Y},$ initially at rest, decays into $^{231}_{90}\text{X}$ by emitting an $\alpha-$particle
$^{235}_{92}\text{Y}\xrightarrow{ \ \ \ \ \ \ \ \ } \ ^{231}_{90}\text{X}+ \ ^4_2\text{He}+\text{energy}.$
The binding energies per nucleon of the parent nucleus, the daughter nucleus and $\alpha-$particle are $7.8\ MeV, 7.835\ MeV$ and $7.07\ MeV,$ respectively. Assuming the daughter nucleus to be formed in the unexcited state and neglecting its share in the energy of the reaction, find the speed of the emitted $\alpha-$particle. $($Mass of $\alpha-$ particle $= 6.68 \times 10^{–27}kg).$
→
Photoelectrons are emitted from a metal surface when illuminated with $UV$ light of wavelength $330 nm$ . The minimum amount of energy required to emit the electrons from the surface is $3.5 \times 10^{-19} J$. Calculate :
$a$. the energy of the incident radiation, and
$b$. the kinetic energy of the photoelectron.
→
Estimate the number of electrons in $100g$ of water. How much is the total negative charge on these electrons?
→
Write Biot-Savart law. Write the path of the motion of an electron when it enters magnetic field (a) perpendicularly (b) at $\theta$ angle.
→
In series $\text{LCR}$ circuit, the plot of $I_{max}$ vs $\omega$ is shown in Fig. Find the bandwidth and mark in the figure.
→

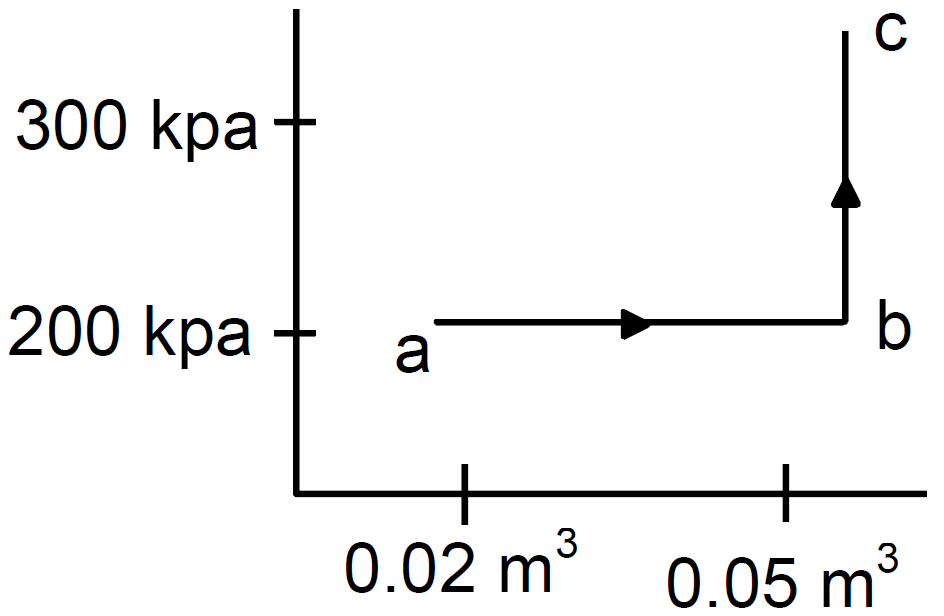

A substance is taken through the process abc as shown in figure. If the internal energy of the substance increases by 5000J and a heat of 2625cal is given to the system, calculate the value of J.
→
