With the help of a ray diagram, determine the position, nature and size of the image formed of an object placed at the centre of curvature of a concave mirror.

The boy walks towards the mirror at a speed of 1m/ s. At what speed does his image approach him?

Which kind of mirror is used in the headlights of a car? Why is it used for this purpose?

A vertical ray of light strikes the horizontal surface of some water:

1. What is the angle of incidence?
2. What is the angle of refraction?

Write the word AMBULANCE as it would appear when reflected in a plane mirror. Why is it sometimes written in this way (as its mirror image) on the front of an ambulance?

Draw diagram to represent the action of a concave mirror on a beam of parallel light rays. Mark on this diagram principal axis, focus F, centre of curvature C, pole P and focal length ƒ, of the concave mirror.

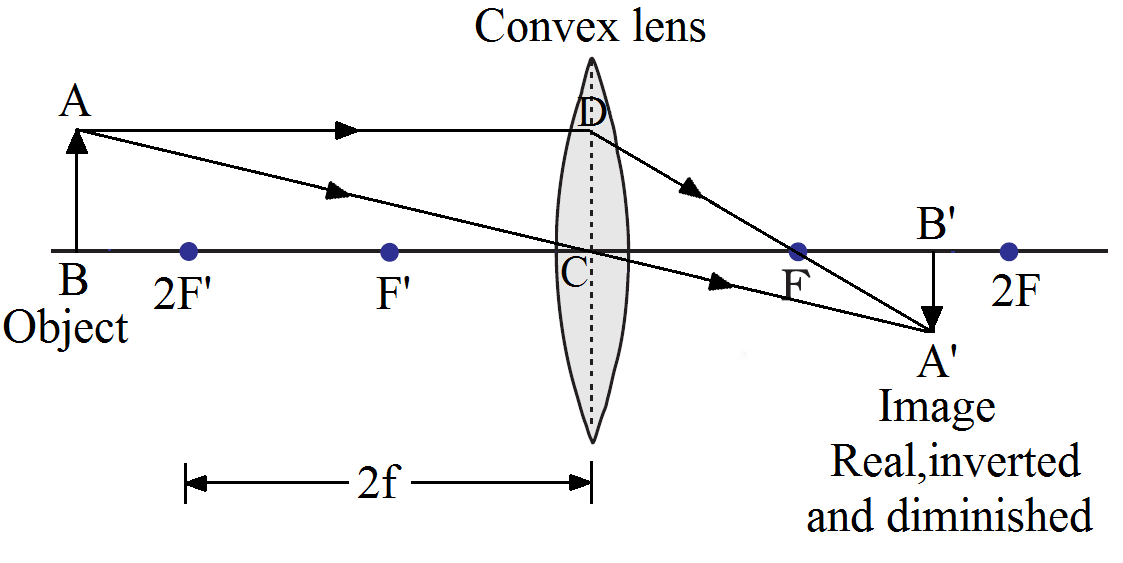

What is the position of image when an object is placed at a distance of 10cm from a convex lens of focal length 10cm?

It is desired to obtain an erect image of an object, using concave mirror of focal length of 12cm.
Will the image be smaller or larger than the object? Draw ray diagram to show the formation of image in this case.

What type of lens is shown in the diagram on the right? What will happen to the parallel rays of light? Show by completing the ray diagram.

How will you distinguish between a plane mirror, a concave mirror and a convex mirror without touching them?
