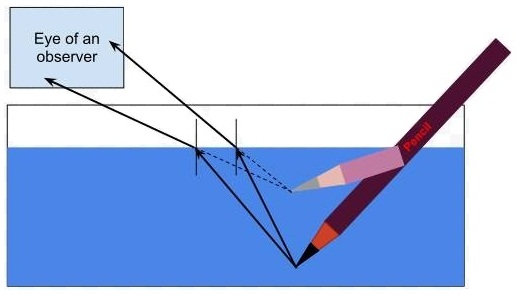

Explain with the help of a labelled ray diagram, why a pencil partly immersed in water appears to be bent at the water surface. State whether the bending of pencil will increase or decrease if water is replaced by another liquid which is optically more dense than water. Give reason for your answer.
Download our app for free and get started
A pencil placed in water appears to be bent because of refraction of light. The refraction causes an apparent shift in the position of the part of the pencil within the water.
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1The refractive indices of water and glass are $\frac{3}{4}\text{ and }\frac{3}{2}$ respectively. Write the relation and find the value of refractive index of water with respect to glass and glass with respect to water.View Solution
- 2View SolutionA student wants to project the image of a candle flame on a screen 90 cm in front of a mirror by keeping the flame at a distance of 15 cm from its pole.
- Suggest the type of mirror he should use.
- Determine the linear magnification in this case.
- Find the distance between the object and its image.
- Draw ray diagram to show the image formation in this case.
- 3View SolutionWhen an object is placed 20cm from a concave mirror, a real image magnified three times is formed. Find:
- The focal length of the mirror.
- Where must the object be placed to give a virtual image three times the height of the object?
- 4View SolutionHow far should an object be placed from a convex lens of focal length 20 cm to obtain its image at a distance of 30 cm from the lens? What will be the height of the image if the object is 6 cm tall?
- 5View SolutionWhich type of lens is:
- A converging lens, and which is.
- A diverging lens? Explain your answer with diagrams.
- 6View SolutionDraw the ray diagram in your answer book and show the formation of image of object AB with suitable rays. Mention the position and nature of image.
- 7View SolutionFor which position of the object does a convex lens form a virtual and erect image? Explain with the help of a ray diagram.
- 8How far should an object be placed from the pole of a converging mirror of focal length 20cm to form a real image of the size exactly$\frac{1}{4}$ th the size of the object?View Solution
- 9View SolutionA convex lens of focal length 0.10m is used to form a magnified image of an object of height 5mm placed at a distance of 0.08m from the lens. Calculate the position, nature and size of the image.
- 10View SolutionDraw a labelled ray diagram to show how a ray of light passes through a parallel sided glass block:
- If it hits the glass block at 90° (that is, perpendicular to the glass block).
- If it hits the glass block at an angle other than 90° (that is, obliquely to the glass block).
