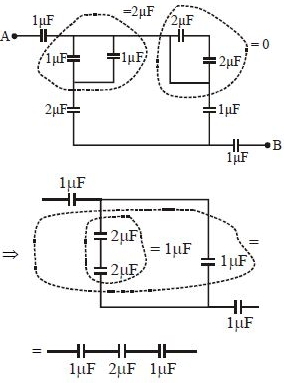

Find the equivalent capacitance between $A$ and $B$
Medium
Download our app for free and get started
$\frac{1}{ C _{ eq }}=\frac{1}{1}+\frac{1}{2}+\frac{1}{1}=\frac{2+1+2}{2}$
$C _{ eq }=\frac{2}{5}\; \mu F$
