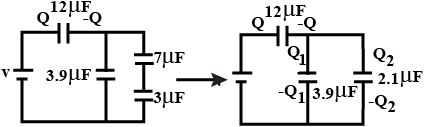

Four capacitors and a battery are connected as shown. The potential drop across the $7$ $ \mu F$ capacitor is $ 6$ $ V$. Then the :
  • Apotential difference across the $12$ $ \mu F$ capacitor is $10 $ $V$.
  • Bcharge on the $3$ $\mu F$ capacitor is $42$ $\mu C$
  • Ce.m.f. of the battery is $30$ $ V$
  • D
    all of the above
