Question
In a plane electromagnetic wave, the electric field oscillates sinusoidally at a frequency of $2.0 \times 10^{10} Hz$ and amplitude $48 V m^{-1}.$
  1. What is the wavelength of the wave?
  2. What is the amplitude of the oscillating magnetic field?
  3. Show that the average energy density of the $E$ field equals the average energy density of the $B$ field. $[c = 3 \times 10^8 m s^{-1}.]$
​​​​​​​
✓

Answer

Frequency of the electromagnetic wave $, ν = 2.0 \times 10^{10} Hz$ Electric field amplitude $, E_0 = 48 V m^{-1}$ Speed of light $, c = 3 \times 10^8 m/ s$
  1. Wavelength of a wave is given as:
$\lambda=\frac{\text{c}}{\text{v}}$
$=\frac{3\times10^8}{2\times10^{10}}=0.015 \ \text{m}$
  1. Magnetic field strength is given as:
$\text{B}_0=\frac{\text{E}_0}{\text{c}}$
$=\frac{48}{3\times10^{8}}=1.6\times10^{-7}\ \text{T}$
  1. Energy density of the electric field is given as:
$\text{U}_E=\frac{1}{2}\in_0\text{E}^2$
And, energy density of the magnetic field is given as:
$\text{U}_\text{B}=\frac{1}{2\mu_0}\text{B}^2$
Where, $\in_0$ = Permittivity of free space
$\mu_0 =$ Permeability of free space
We have the relation connecting $E$ and $B$ as:
$E = cB … (1)$
Where,
$\text{c}=\frac{1}{\sqrt{\in_0 \ \mu_0}}\dots(2)$
Putting equation $(2)$ in equation $(1),$ we get
$\text{E}=\frac{1}{\sqrt{\in_0 \ \mu_0}}\text{B}$
Squaring both sides, we get
$\text{E}^2=\frac{1}{\in_0\ \mu_0}\text{B}^2$
$\in_0\text{E}^2=\frac{\text{B}^2}{\mu_0}$
$\frac{1}{2}\in_0\text{E}^2=\frac{1}{2}\frac{\text{B}^2}{\mu_0}$
$\Rightarrow \ \text{U}_\text{E}=\text{U}_\text{B}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Electromagnetic Waves→Electromagnetic Waves — all question types→Physics STD 12 Science question papers→Rajasthan Board STD 12 Science question papers→Rajasthan Board question paper generator→

Similar questions

A bar magnet of length $1\ cm$ and cross-sectional area $1.0\ cm^2$ produces a magnetic field of $1.5 \times 10$. T at a point in end-on position at a distance $15\ cm$ away from the centre.
  1. Find the magnetic moment $M$ of the magnet.
  2. Find the magnetization $I$ of the magnet.
  3. Find the magnetic field $B$ at the centre of the magnet.
→
  1. Explain, giving reasons, the basic difference in converting a galvanometer into $(i)$ a voltmeter and $(ii)$ an ammeter.
  2. Two long straight parallel conductors carrying steady currents $I_1$ and $I_2$ are separated by a distance $'d\ '$. Explain briefly, with the help of a suitable diagram, how the magnetic field due to one conductor acts on the other. Hence deduce the expression for the force acting between the two conductors. Mention the nature of this force.
→
A magnetic field of $(4.0\times10^{-3}\vec{\text{k}})$ T exerts a force of $(4.0\vec{\text{i}}+3.0\vec{\text{j}})\times10^{-10}$ N on a particle with a charge of $1.0\times10^{-9}\text{C}$ and going in the x−y plane. Find the velocity of the particle.
→
Monochromatic radiation of wavelength $640.2 nm (1nm = 10^{–9} m)$ from a neon lamp irradiates photosensitive material made of caesium on tungsten. The stopping voltage is measured to be $0.54 V.$ The source is replaced by an iron source and its $427.2\ nm$ line irradiates the same photo-cell. Predict the new stopping voltage.
→
A card sheet divided into squares each of size 1 mm2 is being viewed at a distance of 9 cm through a magnifying glass (a converging lens of focal length 9 cm) held close to the eye.
(a) What is the magnification produced by the lens? How much is the area of each square in the virtual image?
(b) What is the angular magnification (magnifying power) of the lens?
(c) Is the magnification in (a) equal to the magnifying power in (b)? Explain.
→

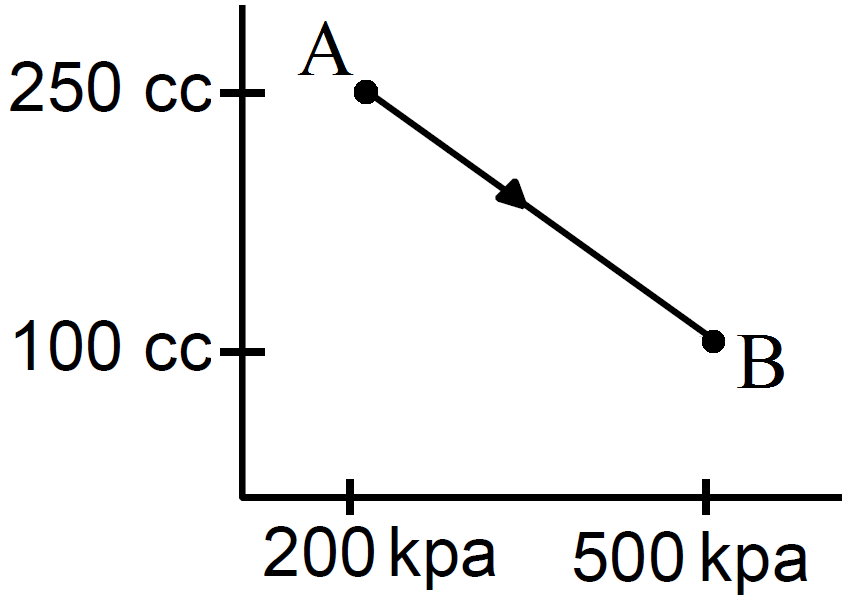

A gas is taken along the path AB as shown in figure. If 70cal of heat is extracted from the gas in the process, calculate the change in the internal energy of the system.
→
