Question

In a silicon transistor, the base current is changed by $20\mu\text{A}.$ This results in a change of 0.02V in base to emitter voltage and a change of 2mA in the collector current.

Find the input resistance, $\beta-$ac and trans conductance of the transistor.
This transistor is used as an amplifier in CE configuration with a load resistance $5\text{k}\Omega$ What is the voltage gain of the amplifier?

✓

Answer

Given $\Delta\text{I}_\text{B} = 20\mu\text{A} = 20 \times 10^{-3}\text{mA} = 0.020\text{mA,}$
$\Delta\text{V}_\text{BE} = 0.02\text{V}, \Delta\text{I}_\text{C} = 2\text{mA}$
Input resistance, $\text{R}_\text{i}=\frac{\Delta\text{V}_\text{BE}}{\Delta\text{I}_\text{B}}=\frac{ 0.02}{20\times10^{-6}}\Omega=10^3\Omega=1\text{k}\Omega$
Current gain, $\beta_\text{ac}=\frac{\Delta\text{I}_\text{C}}{\Delta\text{I}_\text{B}}=\frac{\text{2mA}}{0.020\text{mA}}=100$
Trans conductance of a transistor is defined as the ratio of change in collector current to the change in base to emitter voltage at constant collector to emitter voltage, i.e.,
$\text{gm}=\Big(\frac{\Delta\text{I}_\text{C}}{\Delta\text{V}_\text{BE}}\Big)_{\text{V}_\text{CE} =\text{cons}\tan}\text{t}=\frac{2\times10^{-3}}{0.02}=0.1\text{W}^{-1}$
Voltage gain, $\text{A}_\text{v}=\frac{\text{R}_\text{L}}{\text{R}_\text{i}}\times\beta$
Given $\text{RL}=5\text{k}\Omega=5\times103\Omega,$
$\therefore\text{A}_\text{v}=\frac{5\times10^3}{1000}\times1000=500$
As CE amplifier causes a phase shift of 180° between input and output voltages, so voltage gain, $A_ν = -500$.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "3 Marks Question" from Semiconductor Electronic: Material, Devices And Simple Circuits→Semiconductor Electronic: Material, Devices And Simple Circuits — all question types→Physics STD 12 Science question papers→Gujarat Board STD 12 Science question papers→Gujarat Board question paper generator→

Similar questions

With the help of an example, explain how the neutron to proton ratio changes during $\alpha-$decay of a nucleus.

Figure, shows an aluminium wire of length 60cm joined to a steel wire of length 80cm and stretched between two fixed supports. The tension produced is 40N. The cross-sectional area of the steel wire is $1.0mm^2$ and that of the aluminium wire is $3.0 mm^2$. What could be the minimum frequency of a tuning fork which can produce standing waves in the system with the joint as a node? The density of aluminium is $2.6g/cm^3$ and that of steel is $7.8g/cm^3.$

Define ‘activity’ of a radioactive substance.
Two different radioactive elements with half lives $T_1$ and $T_2$ have $N_1$ and $N_2$ undecayed atoms respectively present at a given instant. Derive an expression for the ratio of their activities at this instant in terms of $\mathrm{N}_1$ and $\mathrm{N}_2$.

$\text{ }^{197}_{80}\text{Hg}$ decay to $\text{ }^{197}_{79}\text{Au}$ through electron capture with a decay constant of 0.257 per day.

What other particle or particles are emitted in the decay?
Assume that the electron is captured from the K shell. Use Moseley's law $\sqrt{\text{v}}=\text{a(Z}-\text{b})$ with $\text{a}=4.95\times10^7\text{s}^{-\frac{1}{2}}$ and b = 1 to find the wavelength of the $\text{K}_{\alpha}$ X-ray emitted following the electron capture.

What conclusion can you draw about displacement current and conduction current?

Estimate the number of electrons in 100g of water. How much is the total negative charge on these electrons?

The magnetic intensity Hat the centre of a long solenoid carrying a current of 2.0A, is found to be 1500A/m. Find the number of turns per centimetre of the solenoid.

The ground state energy of hydrogen atom is – 13.6 eV. If an electron makes a transition from an energy level – 0.85 eV to – 3.4 eV, calculate the wavelength of the spectral line emitted.To which series of hydrogen spectrum does this wave length belong?

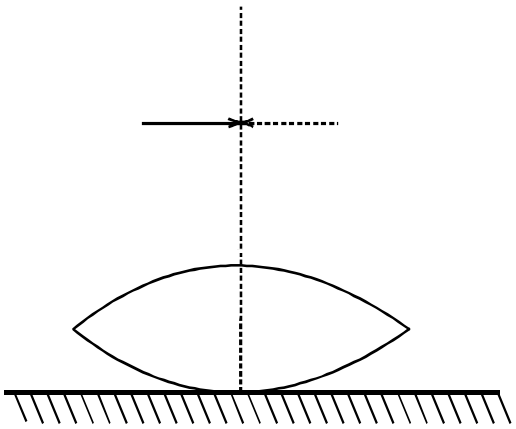

A symmetric biconvex lens of radius of curvature R and made of glass of refractive index 1·5, is placed on a layer of liquid placed on top of a plane mirror as shown in the figure. An optical needle with its tip on the principal axis of the lens is moved along the axis until its real, inverted image coincides with the needle itself. The distance of the needle from the lens is measured to be x. On removing the liquid layer and repeating the experiment, the distance is found to be y. Obtain the expression for the refractive index of the liquid in terms of x and y.

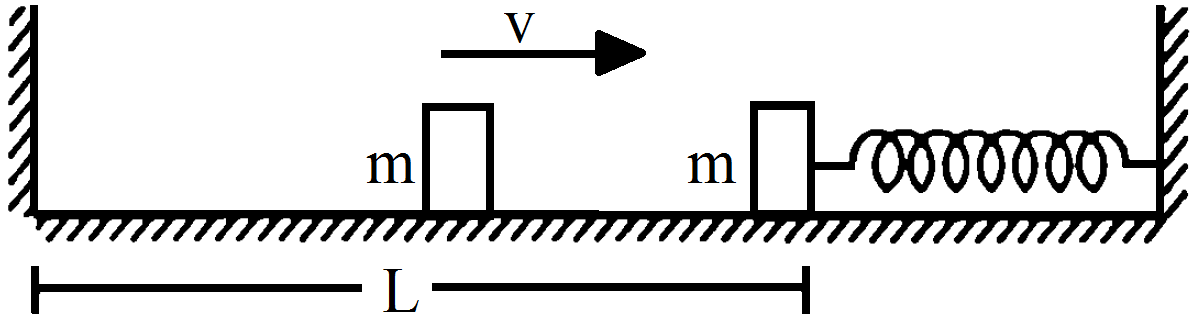

The left block in figure moves at a speed v towards the right block placed in equilibrium. All collisions to take place are elastic and the surfaces are frictionless. Show that the motions of the two blocks are periodic. Find the time period of these periodic motions. Neglect the widths of the blocks.
