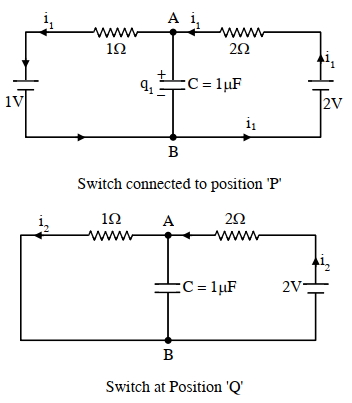

In the circuit shown below, the switch $S$ is connected to position $P$ for a long time so that the charge on the capacitor becomes $q _1 \mu C$. Then $S$ is switched to position $Q$. After a long time, the charge on the capacitor is $q _2 \mu C$.

($1$) The magnitude of $q_1$ is

($2$) The magnitude of $q _2$ is

Give the answer of question ($1$) and ($2$)

  • A$1.30,0.60$
  • B$1.33,0.67$
  • C$1.33,0.60$
  • D$1.30,0.70$
IIT 2021, Advanced
