In the circuit shown the variable resistance is so adjusted that the ammeter reading is same in both the position $1$ and $2$ of the key. The reading of ammeter is $2A$. If $E = 20V$, then $x$ is :- ................... $\Omega$
  • A$2$
  • B$5$
  • C$10$
  • D$20$
Medium
art

Download our app
and get started for free

Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*

Similar Questions

  • 1
    A resistance wire connected in the left gap of a meter bridge balances a $10\, \Omega$ resistance in the right gap at a point which divides the bridge wire in the ratio $3: 2 .$ If the length of the resistance wire is $1.5 m ,$ then the length of $1\, \Omega$ of the resistance wire is $....... \times 10^{-2}\;m$
    View Solution
  • 2
    A $100\, watt$ bulb working on $200 \,volt$ and a $200\, watt$ bulb working on $100\, volt$ have
    View Solution
  • 3
    Through a semiconductor, an electric current is due to drift of
    View Solution
  • 4
    In the electric network shown, when no current flows through the $4\, \Omega $ resistor in the arm $EB$, the potential difference between the points $A$ and $D$ will be ............... $V$
    View Solution
  • 5
    A conductor behaves as a superconductor
    View Solution
  • 6

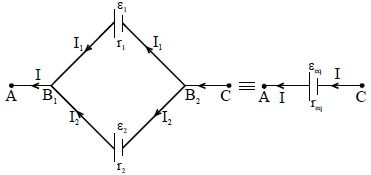

    Consider a parallel combination of the cellsshown in the figure.The potential difference in between $B_1$ and $B_2$ is
    View Solution
  • 7
    The maximum current that flows through a fuse wire before it blows out varies with its radius as
    View Solution
  • 8
    The arrangement as shown in figure is called as
    View Solution
  • 9
    When a current of $2\, A$ flows in a battery from negative to positive terminal, the  potential difference across it is $12\, V$. If a current of $3 \,A$ flows in the opposite  direction potential difference across the terminals of the battery is $15\, V$, the $emf$ of the  battery is ................ $\mathrm{V}$
    View Solution
  • 10
    The circuit shown here is used to compare the emf of two cells $E_1$ and $E_2 (E_1 > E_2)$. The null point is at $C$ when the galvanometer is connected to $E_1$. When the galvanometer is connected to $E_2$, the null point will be
    View Solution
