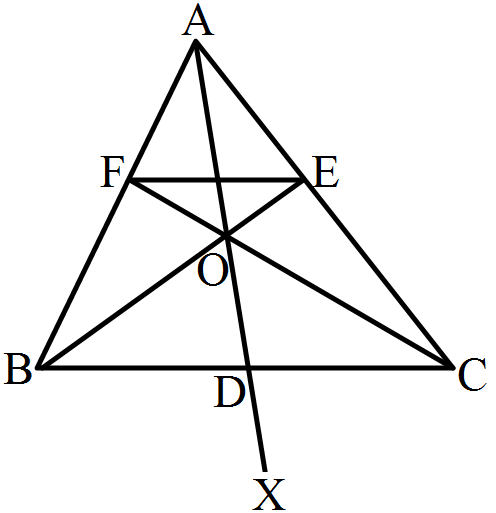

In the given figure, side BC of $\triangle\text{ABC}$ is bisected at D and O is any point on AD. BO and CO produced meet AC and AB at E and F respectively, and AD is produced to X so that D is the midpoint of OX Prove that AO : AX = AF : AB and show that EF || BC.
Download our app for free and get started
It is given that BC is bisected at D.
$\therefore\text{BD}=\text{DC}$
It is also given that OD = OX
The diagonals OX and BC of quadrilateral BOCX bisect each other.
Therefore, BOCX is a parallelogram
$\therefore\text{BO }||\text{ CX}$ and $\text{BX }||\text{ CO}$
$\text{BX }||\text{ CF}$ and $\text{CX }||\text{ BE}$
$\text{BX }||\text{ OF}$ and $\text{CX }||\text{ OE}$
Applying Thales' theorem in $\triangle\text{ABX},$ we get:
$\frac{\text{AO}}{\text{AX}}=\frac{\text{AF}}{\text{AB}}\dots(1)$
Also, in $\triangle\text{ACX},\text{CX }||\text{ OE}.$
Therefore by Thales' theorem, we get:
$\frac{\text{AO}}{\text{AX}}=\frac{\text{AE}}{\text{AC}}\dots(2)$
From (1) and (2), we have:
$\frac{\text{AF}}{\text{AB}}=\frac{\text{AE}}{\text{AC}}$
Applying the converse of Thales' theorem in $\triangle\text{ABC},\text{EF }||\text{ CB}.$
This completes the proof.
$\therefore\text{BD}=\text{DC}$
It is also given that OD = OX
The diagonals OX and BC of quadrilateral BOCX bisect each other.
Therefore, BOCX is a parallelogram
$\therefore\text{BO }||\text{ CX}$ and $\text{BX }||\text{ CO}$
$\text{BX }||\text{ CF}$ and $\text{CX }||\text{ BE}$
$\text{BX }||\text{ OF}$ and $\text{CX }||\text{ OE}$
Applying Thales' theorem in $\triangle\text{ABX},$ we get:
$\frac{\text{AO}}{\text{AX}}=\frac{\text{AF}}{\text{AB}}\dots(1)$
Also, in $\triangle\text{ACX},\text{CX }||\text{ OE}.$
Therefore by Thales' theorem, we get:
$\frac{\text{AO}}{\text{AX}}=\frac{\text{AE}}{\text{AC}}\dots(2)$
From (1) and (2), we have:
$\frac{\text{AF}}{\text{AB}}=\frac{\text{AE}}{\text{AC}}$
Applying the converse of Thales' theorem in $\triangle\text{ABC},\text{EF }||\text{ CB}.$
This completes the proof.
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions

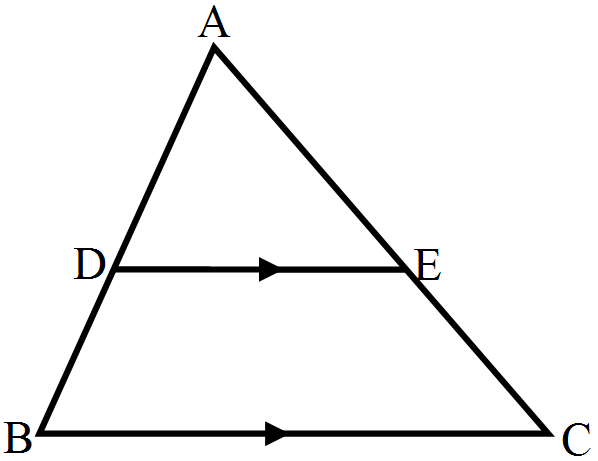

- 1D and E are points on the sides AB and AC respectively of a $\triangle\text{ABC}$ such that DE || BC: If $\frac{\text{AD}}{\text{AB}}=\frac{8}{15}$ and EC = 3.5cm, find AE.View Solution
- 2$\triangle\text{ABC}$ is an isosceles triangle with $AB = AC = 13\ cm$. The length of altitude from $A$ on $BC$ is $5\ cm$. Find $BC$.View Solution

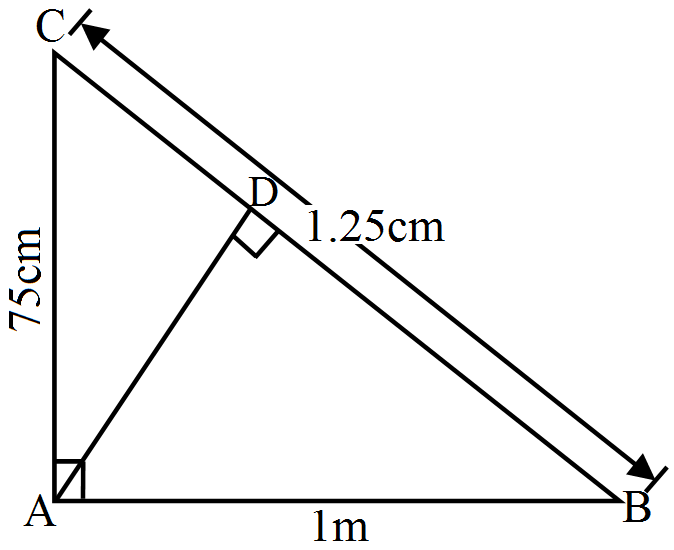

- 3In the given figure, $\angle\text{CAB}=90^\circ$ and $\text{AD}\perp\text{BC}.$ Show that $\triangle\text{BDA}\sim\triangle\text{BAC}.$ If AC = 75cm, AB = 1m, and BC = 1,25m find AD.View Solution
- 4View SolutionState the two properties which are necessary for given two triangles to be similar.
- 5$\triangle\text{ABC}\sim\triangle\text{DEF}$ such that $\text{ar}(\triangle\text{ABC})=64\text{cm}^2$ and $\text{ar}(\triangle\text{DEF})=169\text{cm}^2.$ If BC = 4cm, find EF.View Solution
- 6View SolutionState Pythagoras theoram.
- 7View SolutionFor the following statments state whether true (T) or false(F):

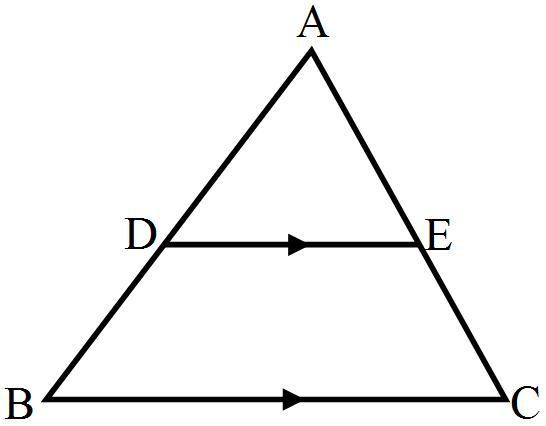

Any two rectangles are similar. - 8D and E are points on the sides AB and AC respectively of a $\triangle\text{ABC}$ such that DE || BC:View Solution
AD = (7x - 4)cm, AE = (5x - 2)cm, DB = (3x + 4)cm and EC = 3x cm.
- 9A guy wire attached to a vertical pole of height $18\ m$ is $24\ m$ long and has a stake attached to the other end.View Solution

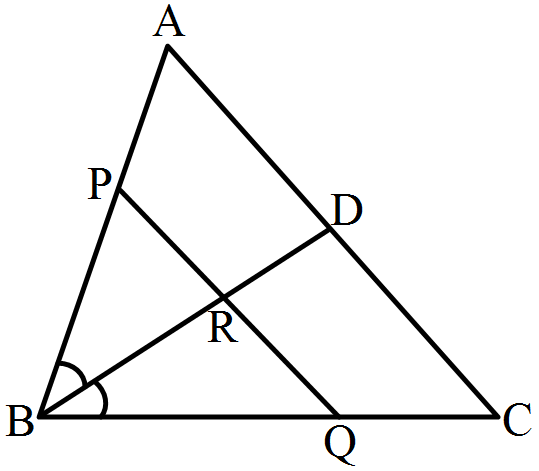

How far from the base of the pole should the stake be driven so that the wire will be taut? - 10In $\triangle\text{ABC},$ the bisector of $\angle\text{B}$ meets AC at D. A line PQ || AC meets AB, BC and BD at P, Q and R respectively.View Solution
