Triangles — Maths STD 9 — Question

Gujarat BoardEnglish MediumSTD 9MathsTriangles4 Marks
Question
Read the Source/ Text given below and answer any four questions: In a forest, a big tree got broken due to heavy rain and wind. Due to this rain the big branches $AB$ and $AC$ with lengths $5\ m$ fell down on the ground. Branch $AC$ makes an angle of $30^\circ $ with the main tree $AP.$ The distance of Point $B$ from $P$ is $4\ m.$ You can observe that $\triangle\text{ABP}$ is congruent to $\triangle\text{ACP}.$

Now answer the following questions:
$i. \triangle\text{ACP}$ and $\triangle\text{ABP}$ are congruent by which criteria?
$a. \text{SSS}$
$b. \text{SAS}$
$c.\text{ASA}$
$d. \text{RHS}$
$ii.$ What is the length of $CP?$
$a.4\ m$
$b.5\ m$
$c.3\ m$
$d.10\ m$
$iii.$ What is the value of $\angle\text{BAP}?$
$a.40^\circ $
$b.50^\circ $
$c.30^\circ $
$d.60^\circ $
$iv.$ What is the value of $\angle\text{APB}?$
$a.40^\circ $
$b.50^\circ $
$c.60^\circ $
$d.90^\circ $
$v.$ What is the height of the remaining tree$?$
$a.4\ m$
$5\ m$
$c.3\ m$
$d.10\ m$
✓

Answer

$i$ $d$ $RHS$
$ii$ $a$ $4m$
$iii$ $c$ $30^\circ $
$iv$ $d$ $90^\circ $
$v$ $c$ $3m$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "Case study (4 Marks)" from Triangles→Triangles — all question types→Maths STD 9 question papers→Gujarat Board STD 9 question papers→Gujarat Board question paper generator→

Similar questions

Read the following text carefully and answer the questions that follow:
A golf ball is spherical with about $300 - 500$ dimples that help increase its velocity while in play. Golf balls are traditionally white but available in colours also. In the given figure, a golf ball has diameter $4.2 \ cm$ and the surface has $315$ dimples $($hemi$-$spherical$)$ of radius $2 mm.$​​​​​​​

$i.$ Find the surface area of one such dimple.
$ii.$ Find the volume of the material dug out to make one dimple.
$iii.$ Find the total surface area exposed to the surroundings.
OR
Find the volume of the golf ball.
→
Read the Source Text given below and answer any four questions: Veena planned to make a jewellery box to gift her friend Reeta on her marriage. She made the jewellery box of wood in the shape of a cuboid. The jewellery box has the dimensions as shown in the figure below. The rate of painting the exterior of the box is $Rs. 2$ per $cm^2$. After making the box she took help from his friends to decorate the box. The blue colour was painted by Deepak, Black by Suresh, green by Harsh and the yellow was painted by Naresh.

$i.$ What is the volume of the box?
$a. 24000\ cm^3$
$b. 1200\ cm^3$
$c. 800\ cm^3$
$d. 600\ cm^3$
$ii.$ How much area did Suresh paint?
$a. 24000\ cm^2$
$b. 1200\ cm^2$
$c. 800\ cm^2$
$d. 600\ cm^2$
$iii.$How much area did Deepak paint?
$a. 24000\ cm^2$
$b. 600\ cm^2$
$c. 800\ cm^2$
$d. 1200\ cm^2$
$iv.$ What amount did Harsh charge?
$a. Rs. 800$
$b. Rs. 1200$
$c. Rs. 1600$
$d. Rs. 2000$
$v.$ What amount did Veena pay for painting:
$a. Rs. 2600$
$b. Rs. 5200$
$c. Rs. 5000$
$d. Rs. 6000$
→

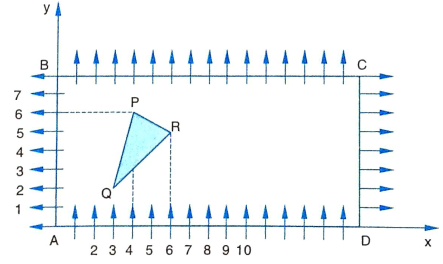

Class IX students of a school in Moti Nagar, Delhi have been allotted a rectangular plot of land, adjacent to their school, for gardening activity. Saplings of Gulmohar are planted on the boundary at a distance of 1 m from each other. There is a triangular grassy lawn in the plot as shown in Fig. The students are to sow seeds of flowering plants on the remaining area of the plot. Considering A as origin, AD along $x$-axis and AB along $y$-axis, answer the following questions:
