Red light of wavelength $5400$ $\mathring {A}$ from a distant source falls on a slit $0.80\, mm$ wide. Calculate the distance between first two dark bands on each side of central bright band in the diffraction pattern observed on a screen place $1.4\, m$ from the slit. (in $mm$)

✓
$1.89$
B
$4$
C
$1$
D
$3$

✓

Answer

Correct option: A.

$1.89$

a
Here wavelength $(\lambda)=5400 \dot{A}=5.4 \times 10^{-7} m , a=0.80 mm =8 \times 10^{-4} m , D=1.4 m$

$\therefore$ Distance between first two dark bands on each side of central maximum is the width of central maximum

$=2 x=\frac{2 \lambda D}{d}$

$=\frac{2 \times 5.4 \times 10^{-7} \times 1.4}{8 \times 10^{-4}}$

$=1.89 \times 10^{-3} m =1.89 mm$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

JEE STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

In the given $A.C.$ circuit, the instantaneous current through inductor and capacitor are $0.8 \,A$ and $0.4 \,A$ respectively. The instantaneous current through resistor is ........

Assertion : The logic gate $NOT$ can be built using diode.

Reason : The output voltage and the input voltage of the diode have $180^o$ phase difference.

The principle of controlled chain reaction is used in

Two inductor coils of self inductance $3\,H$ and $6\,H$ respectively are connected with a resistance $10\,W$ and a battery $10\, V$ as shown in figure. The ratio of total energy stored at steady state in the inductors to that of heat developed in resistance in $10$ $seconds$ at the steady state is (neglect mutual inductance between $L_1$ and $L_2$) :-

Two particles $A$ and $B$ having equal charges $+6\,C$, after being accelerated through the same potential difference, enter in a region of uniform magnetic field and describe circular paths of radii $2\,cm$ and $3\,cm$ respectively. The ratio of mass of $A$ to that of $B$ is

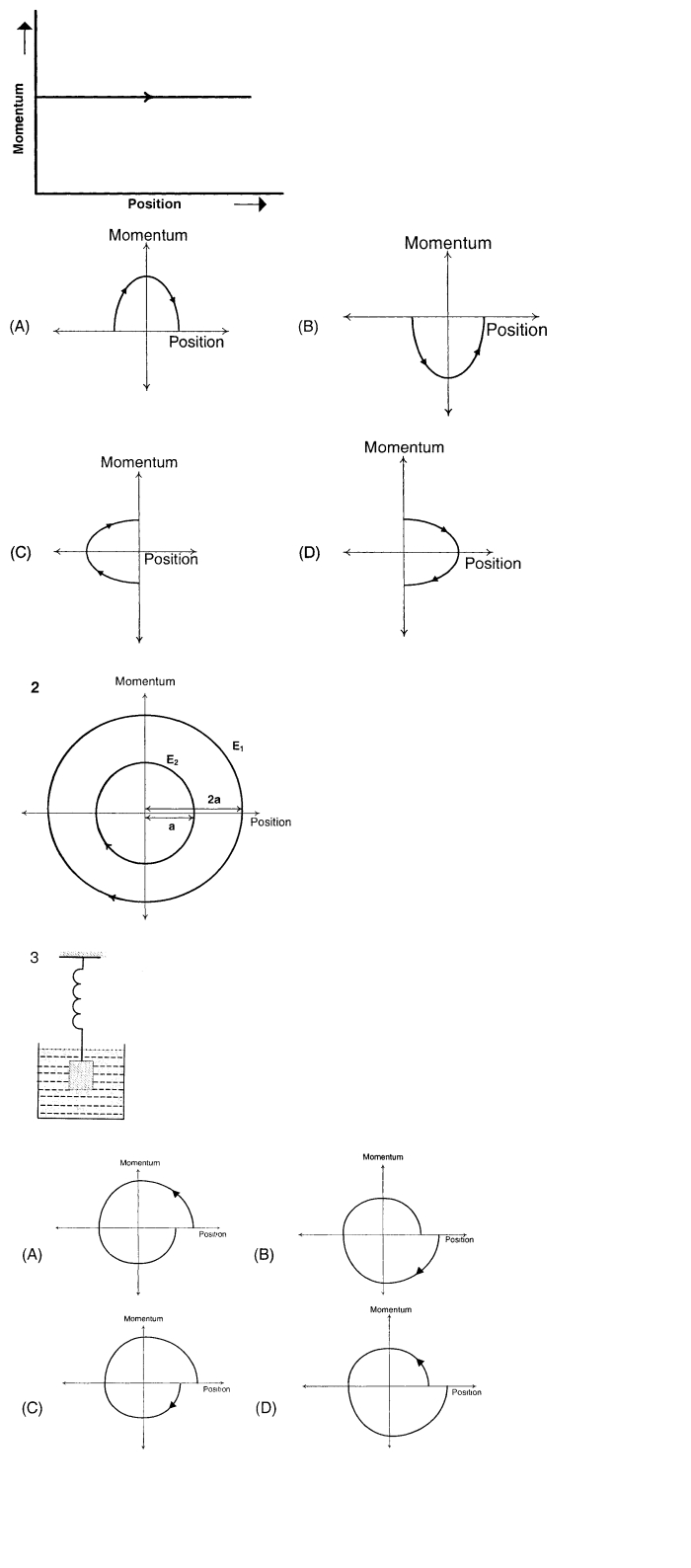

Phase space diagrams are useful tools in analyzing all kinds of dynamical problems. They are especially useful in studying the changes in motion as initial position and momentum are changed. Here we consider some simple dynamical systems in one-dimension. For such systems, phase space is a plane in which position is plotted along horizontal axis and momentum is plotted along vertical axis. The phase space diagram is $x(t)$ vs. $p(t)$ curve in this plane. The arrow on the curve indicates the time flow. For example, the phase space diagram for a particle moving with constant velocity is a straight line as shown in the figure. We use the sign convention in which position or momentum upwards (or to right) is positive and downwards (or to left) is negative. $Image$
