MODEL PAPER 10 — Physics STD 12 Science — Question

Rajasthan BoardEnglish MediumSTD 12 SciencePhysicsMODEL PAPER 103 Marks
Question
The figure shows two identical rectangular loops (1) and (2) placed on a table along with a straight long current carrying conductor between them.
i. What will be the directions of the induced current in the loops when they are pulled away from the conductor with same velocity v?
ii. Will the emf induced in the two loops be equal?
✓

Answer

i. The direction of induced current will be such that it tends to maintain the original flux. So induced current flows anticlockwise in loop 1 and clockwise in loop 2.
ii. No, the emf's induced in the two loops will not be equal. Since, the rate of change of flux is more in the second coil, emf induced in the second coil is more than that in the first coil.
Emf in the first coil, $E _1= Bav$
Emf in the school coil, $E _2= Bbv$
Since, $b > a$ therefore, $E _2> E _1$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "3 Marks Question" from MODEL PAPER 10→MODEL PAPER 10 — all question types→Physics STD 12 Science question papers→Rajasthan Board STD 12 Science question papers→Rajasthan Board question paper generator→

Similar questions

The inputs A and B are inverted by using two NOT gates and their outputs are fed to the NOR gate as shown below.

Analyse the action of the gates (1) and (2) and identify the logic gate of the complete circuit so obtained. Give its symbol and the truth table.
→
  1. Write the functions of three segments of a transistor.
  2. Draw the circuit diagram for studying the input and output characteristics of $n-p-n$ transistor in common emitter configuration. Using the circuit, explain how input, output characteristics are obtained.
→
A ball is dropped from a balloon going up at a speed of $7\ m/s$. If the balloon was at a height $60m$ at the time of dropping the ball, how long will the ball take in reaching the ground?
→
Two concentric circular coils $X$ and $Y$ of radii $16 \ cm$ and $10 \ cm,$ respectively, lie in the same vertical plane containing the north to south direction. Coil $X$ has $20$ turns and carries a current of $16 A;$ coil $Y$ has $25$ turns and carries a current of $18 A$. The sense of the current in $X$ is anticlockwise, and clockwise in $Y$, for an observer looking at the coils facing west. Give the magnitude and direction of the net magnetic field due to the coils at their centre.
→

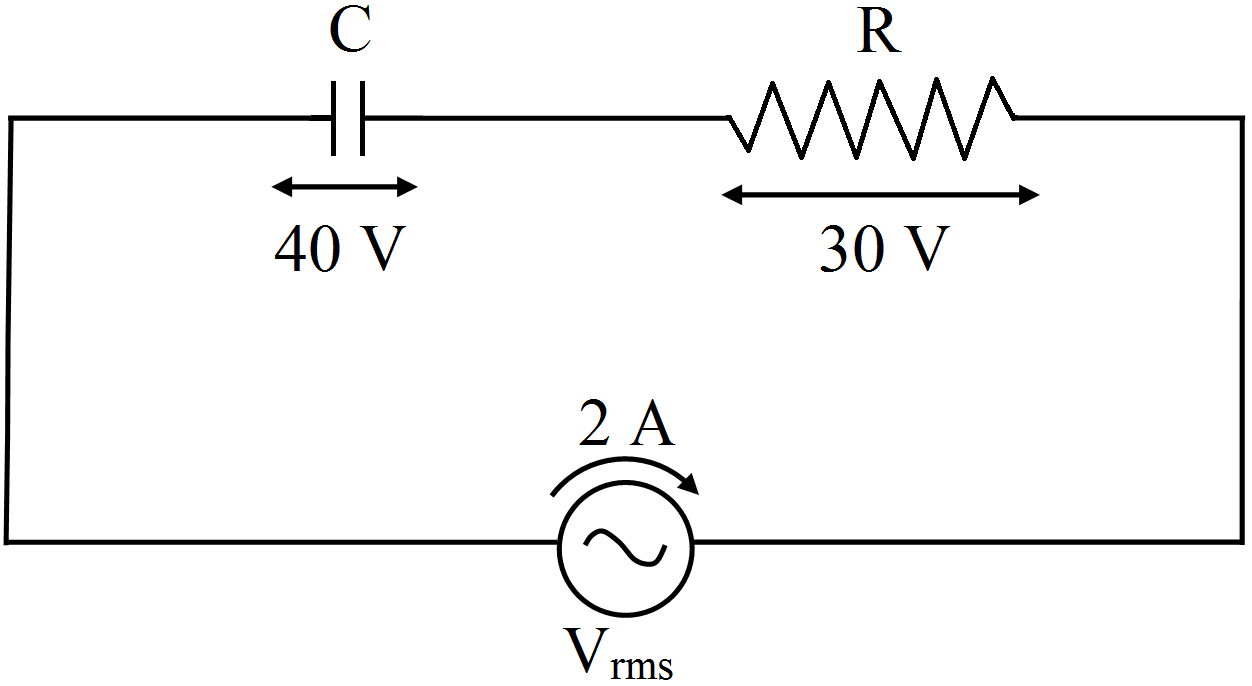

Calculate the following:
