The image of an object formed by a mirror is real, inverted and is of magnification - I. If the image is at a distance of 40 cm from themirror, where is the object placed? Where would the image be if the object is moved 20 cm towards the mirror? State reason and also draw ray diagram for the new position of the object to justify your answer.
CBSE OUTSIDE DELHI - SET 1 2016
Download our app for free and get started
Object position: At C (Centre of curvature)
Object distance = 40cm
Position of the image: at infinity because the focal length of the mirror is 20cm.

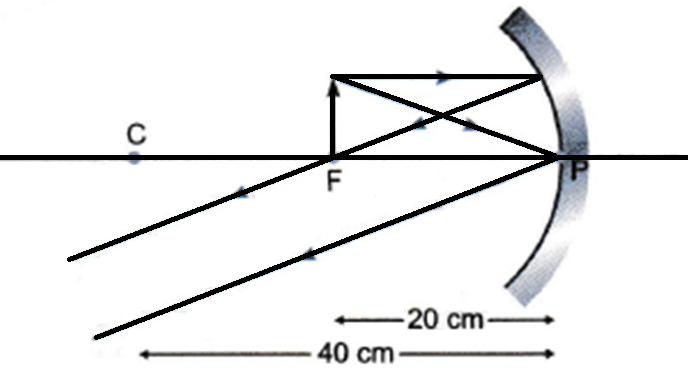

If the object is moved 20cm towards the mirror then its new position would be at the focus of the mirror.
Object distance = 40cm
Position of the image: at infinity because the focal length of the mirror is 20cm.
If the object is moved 20cm towards the mirror then its new position would be at the focus of the mirror.
