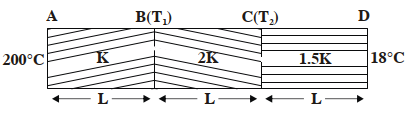

Three rods of equal length $L$ and equal cross-sectional area $A$ are connected in series. The thermal conductivities of their substances are $K , 2 K$ and $1.5 K.$ If the temperature of the open ends of the first and last rods are $200^{\circ} C$ and $18^{\circ} C$ then calculate the temperature at both the junctions whereas the radiation of heat loss is negligible.

✓

Answer

Suppose the temperature at B and C junction $T _1$ and $T _2$ respectively. Since the loss due to radiation is negligible, therefore, the rate of heat flow in the entire system will be the same in the steady state, hence

$\begin{array}{l}H_1=\frac{KA\left(200-T_1\right)}{L}\ldots\ldots (1) \\H_2=\frac{2 KA\left(T_1-T_2\right)}{L}\ldots\ldots (2) \\H_3=\frac{1.5 KA\left(T_2-18\right)}{L}\ldots\ldots (3) \\H_1=H_2=H_3 \\\therefore \quad \frac{KA\left(200-T_1\right)}{L}=\frac{2 KA\left(T_1-T_2\right)}{L} \\=\frac{(1.5 K) A\left(T_2-18\right)}{L} \\\text { or } \quad 200-T_1=2 T_1-2 T_2=1.5 T_2-27\end{array}$
Taking first two terms
$200-T_1=2 T_1-2 T_2$
$3 T_1-2 T_2=200\ldots\ldots (4)$
From second and third term
$2 T_1-3.5 T_2=-27\ldots\ldots (5)$
Solve equation (4) and (5), we get
$T_1=116^{\circ} C, T_2=74^{\circ} C$
