Toricelli’s barometer used mercury. Pascal duplicated it using French wine of density $984 \;kg m^{-3}$. Determine the height (in $m$) of the wine column for normal atmospheric pressure.
Easy
Download our app for free and get started
Density of mercury, $\rho_{1}=13.6 \times 10^{3} kg / m ^{3}$
Height of the mercury column, $h_{1}=0.76 m$
Density of French wine, $\rho_{2}=984 kg / m ^{3}$
Height of the French wine column $=h_{2}$
Acceleration due to gravity, $g=9.8 m / s ^{2}$
The pressure in both the columns is equal, i.e.,
Pressure in the mercury column
$=$ Pressure in the French wine column
$\rho_{1} h_{1} g =\rho_{2} h_{2} g$
$h_{2}=\frac{\rho_{1} h_{1}}{\rho_{2}}$
$=\frac{13.6 \times 10^{3} \times 0.76}{984}$
$=10.5 m$
Hence, the height of the French wine column for normal atmospheric pressure is $10.5\; m$
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1A vertical cylindrical container of base area $A$ and upper cross-section area $A_1$ making an angle $30^o $ with the horizontal is placed in an open rainy field as shown near another cylindrical container having same base area $A$. The ratio of rates of collection of water in the two containers will beView Solution
- 2A tank is filled up to a height $2H$ with a liquid and is placedon a platform of height $H$ from the ground. The distance $x$ from the ground where a small hole is punched to get the maximum range $R$ is:View Solution
- 3A spray gun is shown in the figure where a piston pushes air out of a nozzle. A thin tube of uniform cross section is connected to the nozzle. The other end of the tube is in a small liquid container. As the piston pushes air through the nozzle, the liquid from the container rises into the nozzle and is sprayed out. For the spray gun shown, the radii of the piston and the nozzle are $20 \ mm$ and $1 \ mm$ respectively. The upper end of the container is open to the atmosphere. $Image$View Solution
$1.$ If the piston is pushed at a speed of $5 \ mms ^{-1}$, the air comes out of the nozzle with a speed of
$(A)$ $0.1 \ ms ^{-1}$ $(B)$ $1 \ ms ^{-1}$ $(C)$ $2 \ ms ^{-1}$ $(D)$ $8 \ ms ^{-1}$
$2.$ If the density of air is $\rho_{ a }$ and that of the liquid $\rho_{\ell}$, then for a given piston speed the rate (volume per unit time) at which the liquid is sprayed will be proportional to
$(A)$ $\sqrt{\frac{\rho_{ a }}{\rho_{\ell}}}$ $(B)$ $\sqrt{\rho_a \rho_{\ell}}$ $(C)$ $\sqrt{\frac{\rho_{\ell}}{\rho_{ a }}}$ $(D)$ $\rho_{\ell}$
Give the answer question $1$ and $2.$
- 4Radius of an air bubble at the bottom of the lake is $r$ and it becomes $ 2r $ when the air bubbles rises to the top surface of the lake. If $P $ $cm$ of water be the atmospheric pressure, then the depth of the lake isView Solution
- 5A ball whose density is $0.4 × 10^3 kg/m^3$ falls into water from a height of $9 cm$ . To what depth does the ball sink........ $cm$View Solution
- 6A nurse measures the blood pressure of a seated patient to be $190 \,mm$ of $Hg$.View Solution
- 7A thin vertical uniform wooden rod is pivoted at the top and immersed in water as shown. The container is slowly raised. At a certain moment, the equilibrium becomes unstable. If density of water is $9/5$ times the density of wood, then ratio of total length of rod to the submerged length of rod, at that moment isView Solution
- 8View SolutionCorrect Bernoulli's equation is (symbols have their usual meaning) :
- 9A horizontal right angle pipe bend has crosssectional area $=$ $10 $ $cm^2$ and water flows through it at speed $=$ $20$ $m/s$. The force on the pipe bend due to the turning of water is ........ $N$View Solution

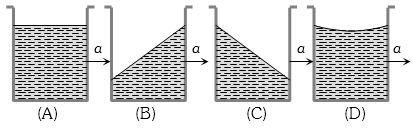

- 10View SolutionA vessel containing water is given a constant acceleration a towards the right, along a straight horizontal path. Which of the following diagram represents the surface of the liquid
