Question
Two coherent point sources $S_1$ and $S_2$ vibrating in phase emit light of wavelength $\lambda$. The separation between the sources is $2\lambda$. Consider a line passing through $S_2$ and perpendicular to the line $S_1S_2.$ What is the smallest distance from $S_2$ where a minimum of intensity occurs?
✓

Answer


For minimum intensity
$\therefore\text{S}_1\text{P}-\text{S}_2\text{P}=\text{x}=(2\text{n}+1)\frac{\lambda}{2}$

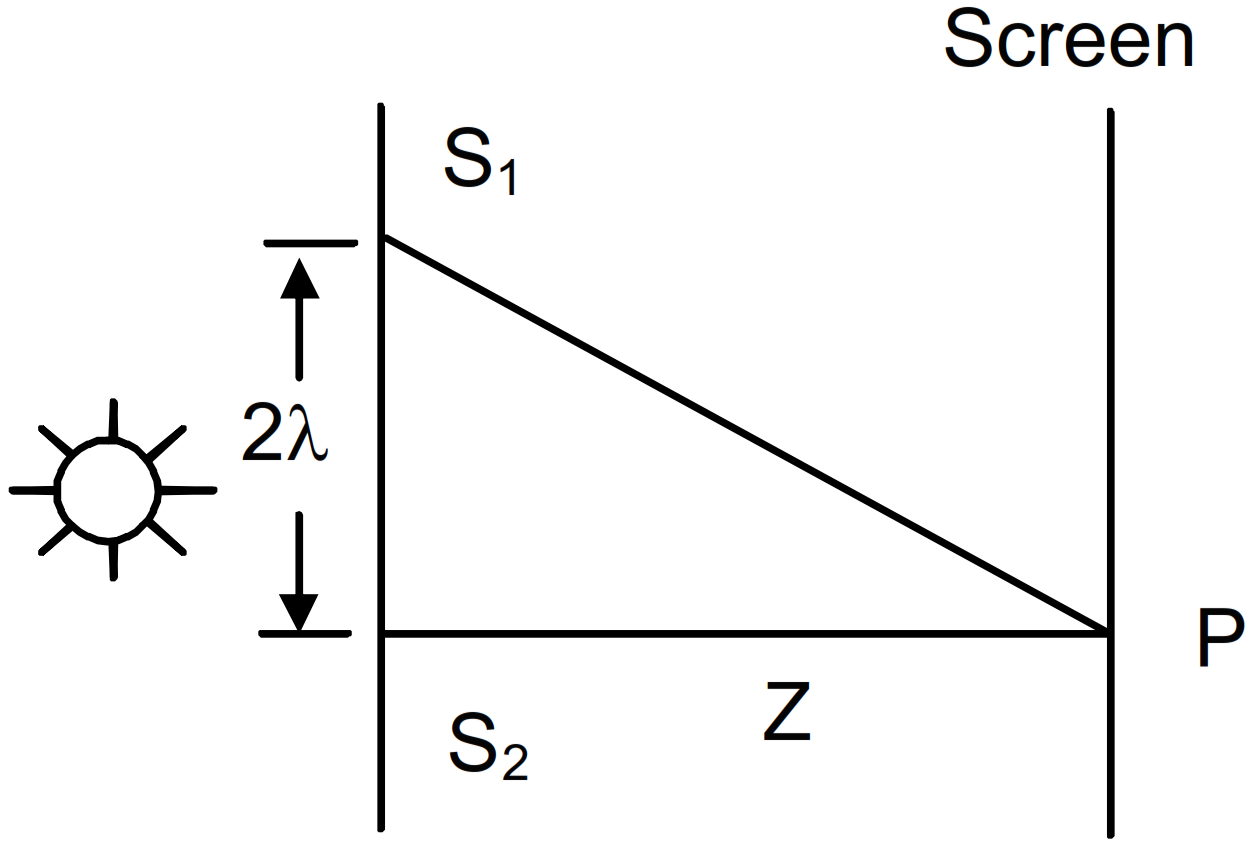

From the figure, we get,
$\Rightarrow\sqrt{\text{X}^2+(2\lambda)^2}-\text{Z}=(2\text{n}+1)\frac{\lambda}{2}$
$\Rightarrow\text{Z}^2+4\lambda^2=\text{Z}^2+(2\text{n}+1)^2\frac{\lambda^2}{4}+\text{Z}(2\text{n}+1)\lambda$
$\Rightarrow\text{Z}=\frac{4\lambda^2-(2\text{n}+1)^2\Big(\lambda^2{4}\Big)}{(2\text{n}+1)\lambda}=\frac{16\lambda^2-(2\text{n}+1)^2\lambda^2}{4(2\text{n}+1)\lambda}\ ...(1)$
Putting, $\text{n}=0$
$\Rightarrow\text{Z}=\frac{15\lambda}{4}\text{n}=-1$
$\Rightarrow\text{Z}=\frac{-15\lambda}{4}$
$\text{n}=1\Rightarrow\text{Z}=\frac{7\lambda}{12}$
$\text{n}=2\Rightarrow\text{Z}=\frac{-9\lambda}{20}$
$\therefore\text{Z}=\frac{7\lambda}{12}$ is the smallest distance for which there will be minimum intensity.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Light Waves→Light Waves — all question types→Physics STD 12 Science question papers→Rajasthan Board STD 12 Science question papers→Rajasthan Board question paper generator→

Similar questions

A multirange voltmeter can be constructed by using a galvanometer circuit as shown in Fig. We want to construct a voltmeter that can measure $2V, 20V$ and $200V$ using a galvanometer of resistance $10\Omega$ and that produces maximum deflection for current of $1mA$. Find $R_1, R_2$ and $R_3$ that have to be used.
→
A rectangular loop of sides $20\ cm$ and $10\ cm$ carries a current of $5.0A$. A uniform magnetic field of magnitude $0.20T$ exists parallel to the longer side of the loop.
  1. What is the force acting on the loop?
  2. What is the torque acting on the loop?
→
A tuning fork of unknown frequency makes 5 beats per second with another tuning fork which can cause a closed organ pipe of length 40cm to vibrate in its fundamental mode. The beat frequency decreases when the first tuning fork is slightly loaded with wax. Find its original frequency. The speed of sound in air is 320m/s.
→
An electric kettle used to prepare tea, takes $2$ minutes to boil $4$ cups of water $(1$ cup contains $200cc$ of water$)$ if the room temperature is $25C$.
  1. If the cost of power consumption is $Rs. 1.00$ per unit $(1$ unit $- 1000$ watt $-$ hour$),$ calculate the cost of boiling $4$ cups of water.
  2. What will be the corresponding cost if the room temperature drops to $5^\circ \ C$?
→
A group of hydrogen atoms are prepared in n = 4 states. List the wavelength that are emitted as the atoms make transitions and return to n = 2 states.
→

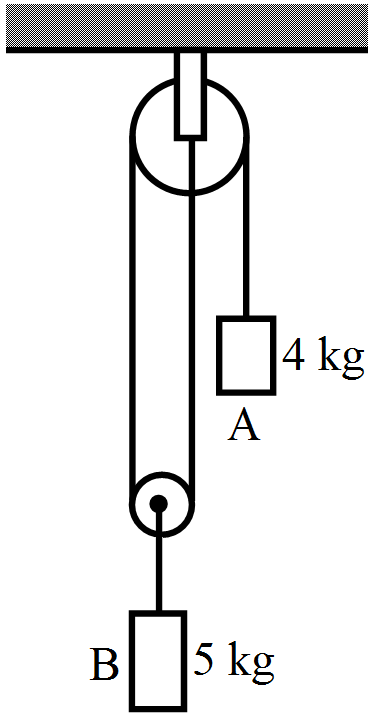

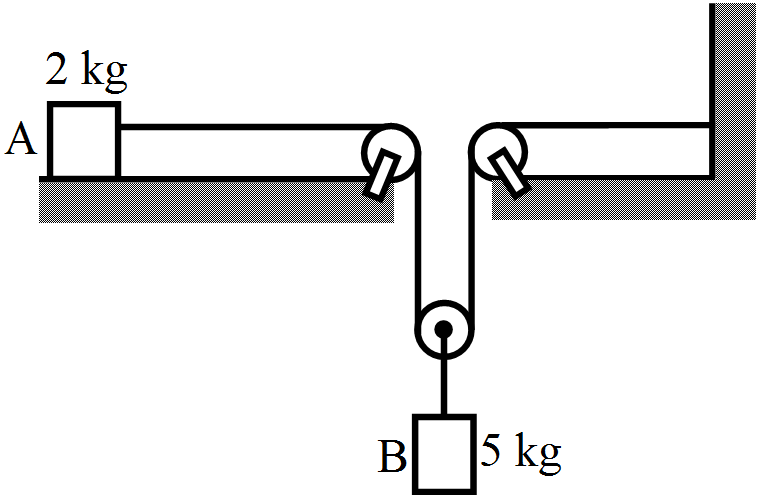

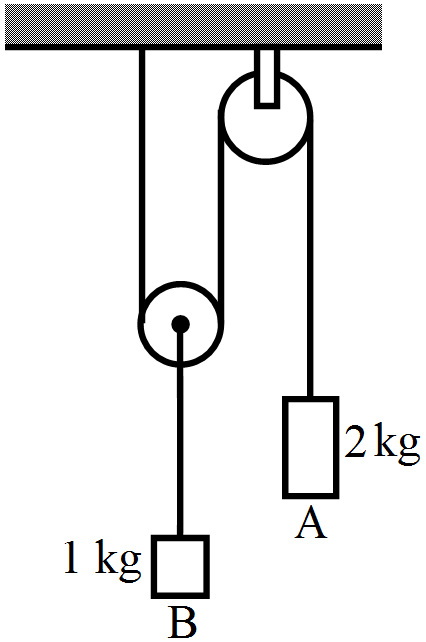

Find the acceleration of the blocks A and B in the three situations shown in figure.


→
A long wire carries a current of 4.00A. Find the energy stored in the magnetic field inside a volume ot 1.00mm at a distance of 10.0cm from the wire.
→

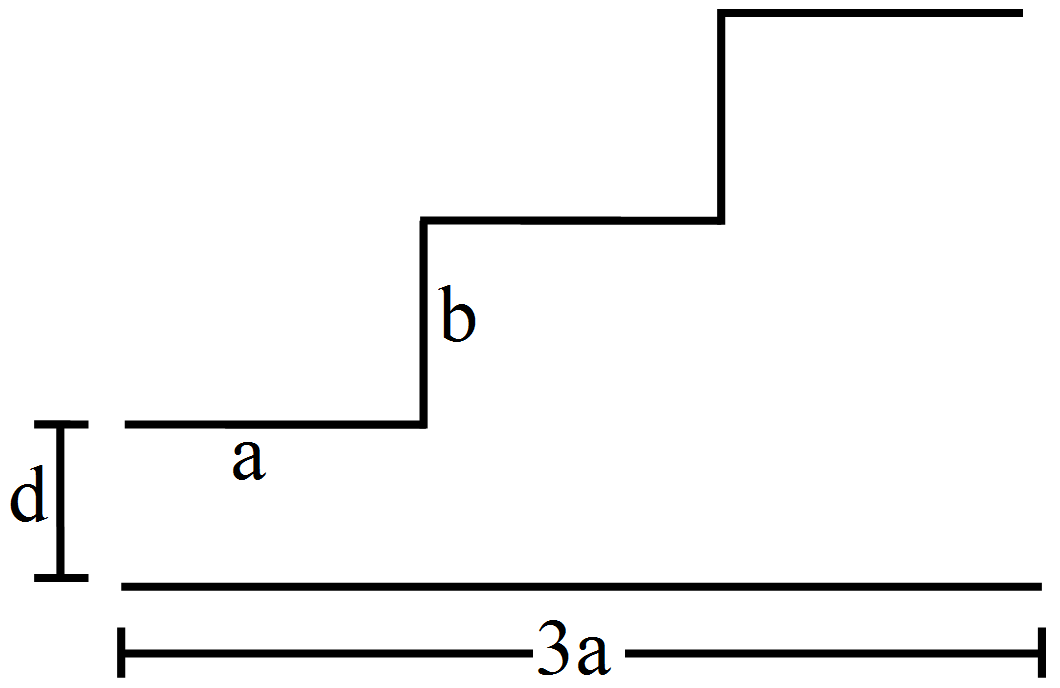

A capacitor is made of a flat plate of area A and a second plate having a stair-like structure as shown in figure. The width of each stair is a and the height is b. Find the capacitance of the assembly.
→
