Question
What is electric flux? Write its $S.I.$ units.Using Gauss’s theorem, deduce an expression for the electric field at a point due to a uniformly charged infinite plane sheet.
✓
Answer
Electric Flux: Total number of electric lines of force crossing a certain area normally.
The surface integral of electric field over a closed surface.
Alternate Answer
$\phi = \oint\overrightarrow{\text{E}}.\text{d}\overrightarrow{\text{s}}$
Derivation: $\phi= \oint_{s}\overrightarrow{\text{E}}.\overrightarrow{\text{ds}}= \frac{\text{q}}{\varepsilon_\circ}$
$2\text{EA} =\frac{\sigma\text{A}}{\varepsilon_\circ}$
$\therefore \text{E} =\frac{\sigma}{2\varepsilon_{\circ}}$
The surface integral of electric field over a closed surface.
Alternate Answer
$\phi = \oint\overrightarrow{\text{E}}.\text{d}\overrightarrow{\text{s}}$
- $S.I.$ Units: $Nm^2 /C$ Or $V-m$
Derivation: $\phi= \oint_{s}\overrightarrow{\text{E}}.\overrightarrow{\text{ds}}= \frac{\text{q}}{\varepsilon_\circ}$
$2\text{EA} =\frac{\sigma\text{A}}{\varepsilon_\circ}$
$\therefore \text{E} =\frac{\sigma}{2\varepsilon_{\circ}}$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
In Figure, $\varepsilon_1$ and $\varepsilon_2$ are respectively 2.0 V and 4.0 V and the resistances $r _1, r _2$ and R are respectively $1.0 \Omega$ $2.0 \Omega$ and $5.0 \Omega$. Calculate the current in the circuit. Also, calculate:
i. potential difference between the points b and a,
ii. potential difference between a and c.
→i. potential difference between the points b and a,
ii. potential difference between a and c.
Three uniform spheres each having a mass M and radius a are kept in such a way that each touches the other two. Find the magnitude of the gravitational force on any of the spheres due to the other two.
What is nuclear binding energy?

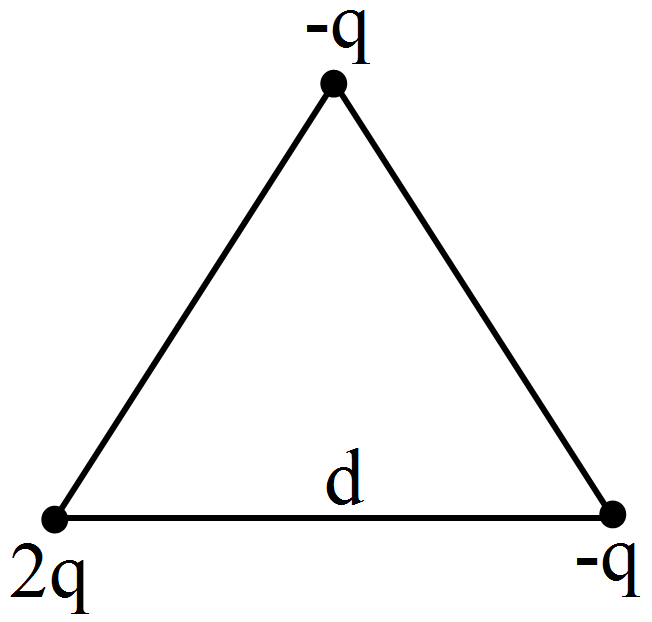

Three charges are arranged on the vertices of an equilateral triangle as shown in figure. Find the dipole moment of the combination.
A healthy youngman standing at a distance of $7m$ from a $11.8m$ high building sees a kid slipping from the top floor. With what speed $($assumed uniform$)$ should he run to catch the kid at the arms height $(1.8m)$?
→A resistance of $R$ draws current from a potentiometer. The potentiometer wire, $AB,$ has a total resistance of $R_o$. A voltage $V$ is supplied to the potentiometer. Derive an expression for the voltage across $R$ when the sliding contact is in the middle of potentiometer wire.

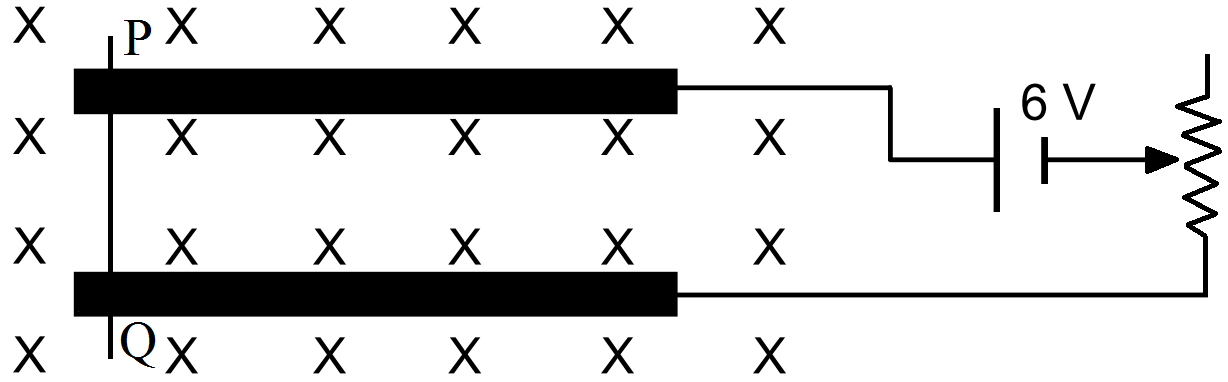

→A metal wire PQ of mass 10g lies at rest on two horizontal metal rails separated by 4.90cm A vertically-downward magnetic field of magnitude 0.800T exists in the space. The resistance of the circuit is slowly decreased and it is found that when the resistance goes below 20.0Ω, the wire PQ starts sliding on the rails. Find the coefficient of friction.
