Question
What is terminal velocity and derive an expression for it?
✓
Answer
Terminal velocity is the maximum constant velocity acquired by the body which is falling freely in a viscous medium, due to the balanced net downward force acting on the body with the upward resistive viscous force offered by the medium on the body. When a small spherical body falls freely through a viscous medium then 3 forces act on it:-
i. Weight of body acting vertically downwards.
ii. Up thrust due to buoyancy = weight of fluid displaced by the body, acting upwards.
iii. Viscous drag $\left( F _{ V }\right)$ or resistive viscous force acting in the direction opposite to the motion of body.
Let $\rho=$ Density of the material of the spherical body
$r =$ Radius of the spherical body
$\sigma=$ Density of the viscous medium.
$\therefore$ True weight of the body $= W =$ volume of the body $\times$ density of the body $\times g$
$
\therefore W=\frac{4}{3} \pi r^3 \rho g
$
Up ward thrust by the fluid, $F _{ T }=$ weight of medium displaced by the spherical body $=$ volume of the body $\times$ density of the viscous
$
\begin{aligned}
& \text { medium } \times g \\
& =\frac{4}{3} \pi r^3 \sigma g
\end{aligned}
$
Say, $v_T=$ Terminal velocity of body
According to Stoke's law, viscous drag or viscous force, $F_V=6 \pi \eta v_T$ ( $\eta$ being coefficient of viscosity of the medium)
When the body attains terminal velocity $v_T$, then
$
\begin{aligned}
& F_{T}+F_{V}=W \\
& \Rightarrow \frac{4}{3} \pi r^3 \sigma g+6 \pi \eta r v_T=\frac{4}{3} \pi r^3 \rho g \\
& \therefore v_T=\frac{2 r^2(\rho-\sigma) g}{9 \eta}
\end{aligned}
$
i. $v_T$ directly depends on radius of body and difference of the pressure of material and medium.
ii. $v_T$ inversely depends of co-efficient of viscosity of the medium.
i. Weight of body acting vertically downwards.
ii. Up thrust due to buoyancy = weight of fluid displaced by the body, acting upwards.
iii. Viscous drag $\left( F _{ V }\right)$ or resistive viscous force acting in the direction opposite to the motion of body.
Let $\rho=$ Density of the material of the spherical body
$r =$ Radius of the spherical body
$\sigma=$ Density of the viscous medium.
$\therefore$ True weight of the body $= W =$ volume of the body $\times$ density of the body $\times g$
$
\therefore W=\frac{4}{3} \pi r^3 \rho g
$
Up ward thrust by the fluid, $F _{ T }=$ weight of medium displaced by the spherical body $=$ volume of the body $\times$ density of the viscous
$
\begin{aligned}
& \text { medium } \times g \\
& =\frac{4}{3} \pi r^3 \sigma g
\end{aligned}
$
Say, $v_T=$ Terminal velocity of body
According to Stoke's law, viscous drag or viscous force, $F_V=6 \pi \eta v_T$ ( $\eta$ being coefficient of viscosity of the medium)
When the body attains terminal velocity $v_T$, then
$
\begin{aligned}
& F_{T}+F_{V}=W \\
& \Rightarrow \frac{4}{3} \pi r^3 \sigma g+6 \pi \eta r v_T=\frac{4}{3} \pi r^3 \rho g \\
& \therefore v_T=\frac{2 r^2(\rho-\sigma) g}{9 \eta}
\end{aligned}
$
i. $v_T$ directly depends on radius of body and difference of the pressure of material and medium.
ii. $v_T$ inversely depends of co-efficient of viscosity of the medium.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
A person travels on a spaceship moving at a speed of $\frac{5\text{c}}{13}$
→- Find the time interval calculated by him between the consecutive birthday celebrations of his friend on the earth.
- Find the time interval calculated by the friend on the earth between the consecutive birthday celebrations of the traveller.
Just as precise measurements are necessary in science, it is equally important to be able to make rough estimates of quantities using rudimentary ideas and common observations. Think of ways by which you can estimate the following (where an estimate is difficult to obtain, try to get an upper bound on the quantity):
The number of air molecules in your classroom.
The number of air molecules in your classroom.
A current of 5.0A exists in the circuit shown in the figure. The wire PQ has a length of 50cm and the magnetic field in which it is immersed has a magnitude of 0.20T. Find the magnetic force acting on the wire PQ.
Explain why:
An optical pyrometer (for measuring high temperatures) calibrated for an ideal black body radiation gives too low a value for the temperature of a red hot iron piece in the open, but gives a correct value for the temperature when the same piece is in the furnace.
An optical pyrometer (for measuring high temperatures) calibrated for an ideal black body radiation gives too low a value for the temperature of a red hot iron piece in the open, but gives a correct value for the temperature when the same piece is in the furnace.
Explain why steel is more elastic than rubber.
Stopping distance of vehicles : When brakes are applied to a moving vehicle, the distance it travels before stopping is called stopping distance. It is an important factor for road safety and depends on the initial velocity $\left(v_0\right)$ and the braking capacity, or deceleration, $-a$ that is caused by the braking. Derive an expression for stopping distance of a vehicle in terms of $v_0$ and $a$.
→A block at rest explodes into three equal parts. Two parts start moving along X and Y axes respectively with equal speeds of 10m/s. Find the initial velocity of the third part.
The length, breadth and thickness of a rectangular sheet of metal are 4.234m, 1.005m, and 2.01cm respectively. Give the area and volume of the sheet to correct significant figures.
If the acceleration due to gravity on moon is one sixth that on the earth what will be the length and time period of a second's pendulum there? (g = 9.8 ms?)

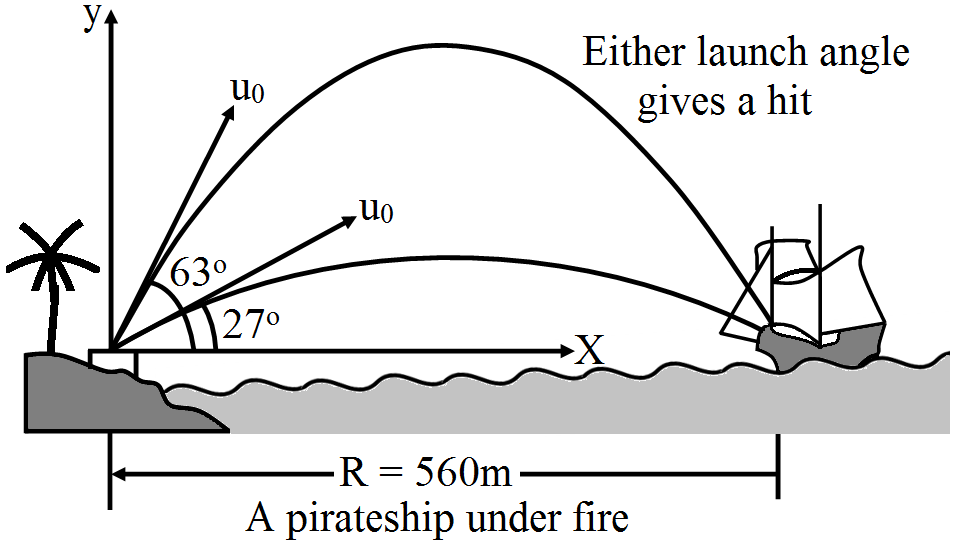

Figure shows a pirateship 560m from a fort defending a harbour entrance. A defence cannon, located at sea level, fires balls at initial speed, u0 = 82m/ s.
→
