Question
What is the equivalent resistance between A and B in the given circuit (Fig?)
✓
Answer
Between A and B, the series combination of two resistors of resistances 2 ohm each is connected in parallel with the 1 ohm resistor.
Equivalent series resistance between A and B, R, = $=2+2=4 \Omega$
Now, between A and B this $4 \Omega$resistor is connected in parallel with $1 \Omega$ resistor.
Equivalent resistance between A and B, R = $\left(\frac{1}{4}+\frac{1}{1}\right)^{-1}=\left(\frac{5}{4}\right)^{-1}=\frac{4}{5} \Omega$
Equivalent series resistance between A and B, R, = $=2+2=4 \Omega$
Now, between A and B this $4 \Omega$resistor is connected in parallel with $1 \Omega$ resistor.
Equivalent resistance between A and B, R = $\left(\frac{1}{4}+\frac{1}{1}\right)^{-1}=\left(\frac{5}{4}\right)^{-1}=\frac{4}{5} \Omega$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Find the effective resistance in the following circuit diagrams (Fig.):
Give two points of difference between a step-up transformer and step-down transformer.
State the principle of a transformer.
State two advantages of ‘the ring system of house wiring’.
Show by a diagram the refraction of two light rays incident parallel to the principal axis on a convex lens by treating it as a combination of a glass block and two triangular glass prisms.
What will happen if switch is connected in ‘neutral wire’?

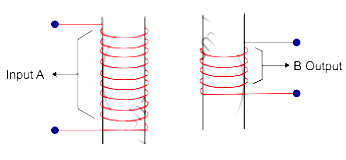

Complete the following diagram of a transformer and name the parts labelled A and B. name the part you have drawn to complete the diagram. What is the material of this part? Is this transformer a step up or step down? Give reason.
