Wave Optics — Physics STD 12 Science — Question

Gujarat BoardEnglish MediumSTD 12 SciencePhysicsWave Optics3 Marks
Question
  1. Why are coherent sources necessary to produce a sustained interference pattern?
  2. In Young's double slit experiment using monochromatic light of wavelength$\lambda,$ the intensity of light at a point on the screen where path difference is$\lambda,$ is K units. Find out the intensity of light at a point where path difference is $\lambda/3.$
✓

Answer

  1. Coherent sources are needed to ensure that the positions of maxima and minima do not change with time.
Alternate Answer

Coherent sources have constant phase difference and, therefore, produce a sustained interference pattern.
  1. $\text{I} = \text{I}_{1} + \text{I}_{2} + 2 \sqrt{\text{I}_{1}\text{I}_{2}}\cos\theta$
For path difference $\lambda,$ phase difference

$\Phi = 2\pi$

$\text{Hence}, \text{k} = 4\text{I}_{0}\cos^{2}\pi =4 \text{ I}_{0}$

For path difference $\lambda\big/3$

Phase difference $\Phi = 2\pi\big/3$

Intensity

$\text{I}' = 4\text{I}_{0}\cos^{2}\pi\big/3$

$ = 4\text{I}_{0}\bigg(\frac{1}{2}\bigg)^{2} = \text{I}_{0}$

Therefore, $\text{I}' = \frac{\text{k}}{4}.$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "3 Marks Question" from Wave Optics→Wave Optics — all question types→Physics STD 12 Science question papers→Gujarat Board STD 12 Science question papers→Gujarat Board question paper generator→

Similar questions

  1. Show, giving a suitable diagram, how unpolarized light can be polarised by reflection.
  2. Two polaroids $P_1$ and $P_2$ are placed with their pass axes perpendicular to each other. Unpolarised light of intensity $I_0$ is incident on $P_1 A$ third polaroid $P_3$ is kept in between $P_1$ and $P_2$ such that its pass axis makes an angle of $60^{\circ}$ with that of $P_1$. Determine the intensity of light transmitted through $P_1, P_2$ and $P_3$.
→
  1. In the following diagram ‘S’ is a semiconductor. Would you increase or decrease the value of R to keep the reading of the ammeter A constant when S is heated? Give reason for your answer.
  1. Draw the circuit diagram of a photodiode and explain its working. Draw its I - V characteristics.
→

Consider a two slit interference arrangements such that the distance of the screen from the slits is half the distance between the slits.

Obtain the value of D in terms of $\lambda$ such that the first minima on the screen fall at a distance D from the centre O.
→

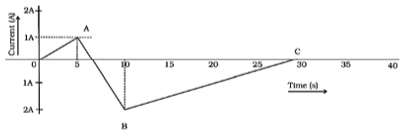

A $($current vs time$)$ graph of the current passing through a solenoid is shown in Figure. For which time is the back electromotive force $(u)$ a maximum. If the back emf at $t = 3s$ is e, find the back emf at $t = 7 s, 15s,$ and $40s. OA, AB$, and $BC$ are straight line segments.
→
When a photon is emitted by a hydrogen atom, the photon carries a momentum with it. (a) Calculate the momentum carries by the photon when a hydrogen atom emits light of wavelength 656.3nm. (b) With what speed does the atom recoil during this transition? Take the mass of the hydrogen atom $= 1.67 \times 10^{-27}kg.$ (c) Find the kinetic energy of recoil of the atom.
→
A capacitor of capacitance $10\mu\text{F}$ is connected across a battery of emf 6.0V through a resistance of $20\text{k}\Omega$ for 4.0s. The battery is then replaced by a thick wire. What will be the charge on the capacitor 4.0s after the battery is disconnected?
→
A small telescope has an objective lens of focal length 144 cm and an eyepiece of focal length 6.0 cm. What is the magnifying power of the telescope? What is the separation between the objective and the eyepiece?
→
Figure shows a part of an electric circuit. The wires AB, CD and EF are long and have identical resistances. The separation between the neighbouring wires is 1.0cm. The wires AE and BF have negligible resistance and the ammeter reads 30A. Calculate the magnetic force per unit length of AB and CD.
→
An ideal gas is taken through a process in which the pressure and the volume are changed according to the equation p = kV. Show that the molar heat capacity of R the gas for the process is given by $\text{C}=\text{C}_\text{v}+\frac{\text{R}}{2}.$
→
A straight wire of length l can slide on two parallel plastic rails kept in a horizontal plane with a separation d. The coefficient of friction between the wire and the rails is $\mu.$ If the wire carries a current i, what minimum magnetic field should exist in the space in order to slide the wire on the rails?
→
