Sample Questions

Motion in One Dimension questions

One sample from each question group in this chapter. Select any group above to see the full set with answer keys.

Q 1MCQ1 Mark
Different positions of a body are given below. Which of the two positions lie on the same straight line?
  • A
    $8 \mathrm{~m}, 60^{\circ} \mathrm{NE}$
  • B
    $3 \mathrm{~m}, 60^{\circ} \mathrm{NE}$
  • C
    $5 \mathrm{~m}, 60^{\circ} \mathrm{EN}$
  • ✓
    $5 \mathrm{~m}, 60^{\circ} \mathrm{NW}$

Answer: D.

View full solution →
Q 6[1 Mark Question Answer]1 Mark
An object covers a distance of S meters in t seconds as follows :
S (meters) 0 8 20 20 16 10 0
t (Seconds) 80 2 5 10 12 15 10
Plot a graph, taking t on X-axis and S on Y-axis. Determine the velocity of the object at time
(i) 6 s, and
(ii) 14 s.
View full solution →
Q 7[2 Mark Question Answer]2 Marks
A body starts to slide over a horizontal surface with an initial velocity of $0.5 ms^{-1}$. Due to friction, its velocity decreases at the rate of $0.05 ms^{-2}$. How much time will it take for the body to stop?
View full solution →
Q 14[3 Mark Question Answer]3 Marks

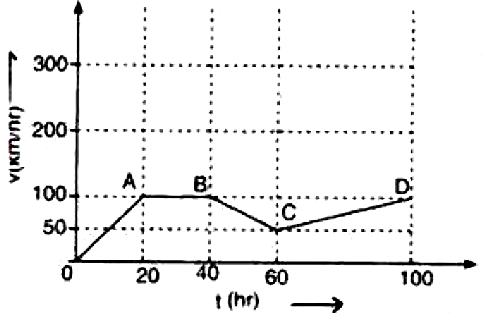

Figure represents graphically the velocity of a car moving along a straight road over a period of 100 hours.

Calculate the acceleration along AB and the retardation along BC.
View full solution →
Q 16[3 Mark Question Answer]3 Marks
A train is moving at a speed of $90 km/h$. On applying brakes, a retardation of $2.5 ms^{-2}$​​​​​​​ is created. At what distance before, should the driver apply the brakes to stop the train at the station?
View full solution →
Q 17[5 Mark Question Answer]5 Marks

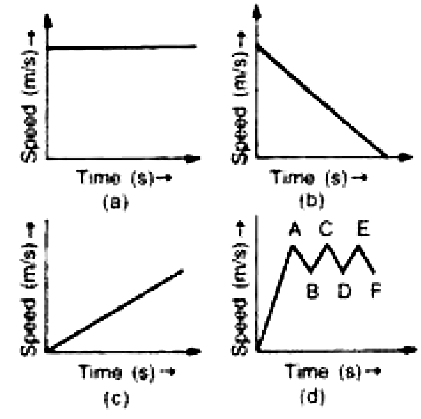

(i) In speed time graph uniform motion is given by a straight line parallel to x axis so figure (a) denotes the uniform motion.
(ii) In speed time graph motion with increasing speed is shown by straight line with positive slope so figure (c) denotes the motion with speed increasing.
(iii) In speed time graph motion with decreasing speed is shown by straight line with negative slope so figure (b) denotes the motion with speed decreasing.
(iv) In speed time graph motion with oscillating speed is shown by zigzag line so figure {d) denotes the motion with speed oscillating.
View full solution →
Q 20[5 Mark Question Answer]5 Marks
A body moves along a straight track. Half of the distance it covers with a velocity of $40 ms^{-1}$ and the remaining half with a velocity of $60 ms^{-1}$. What is the average velocity for the whole journey?
View full solution →
Q 22Match The Following.4 Marks
Given below are the speed -time graphs. Match them with their corresponding motions :
(a) Uniformity retared motion
(b) Non-uniformity acceleration
(c) Non-uniform motion
(d) uniform motion
View full solution →
