The Forces questions

One sample from each question group in this chapter. Select any group above to see the full set with answer keys.

The two ends of a spring are displaced along the length of the spring. All displacement have equal magnitudes. In which case or cases the tension or compression in the spring will have a maximum magnitude?
  1. The right end is displaced towards right and the left end towards left.
  2. Both ends are displaced towards right.
  3. Both ends are displaced towards left.
  4. The right end is displaced towards left and the left end towards right.
View full solution
The sum of all electromagnetic forces between different particles of a system of charged particles is zero:
  1. Only if all the particles are positively charged.
  2. Only if all the particles are negatively charged.
  3. Only if half the particles are positively charged and half are negatively charged.
  4. Irrespective of the signs of the charges.
View full solution

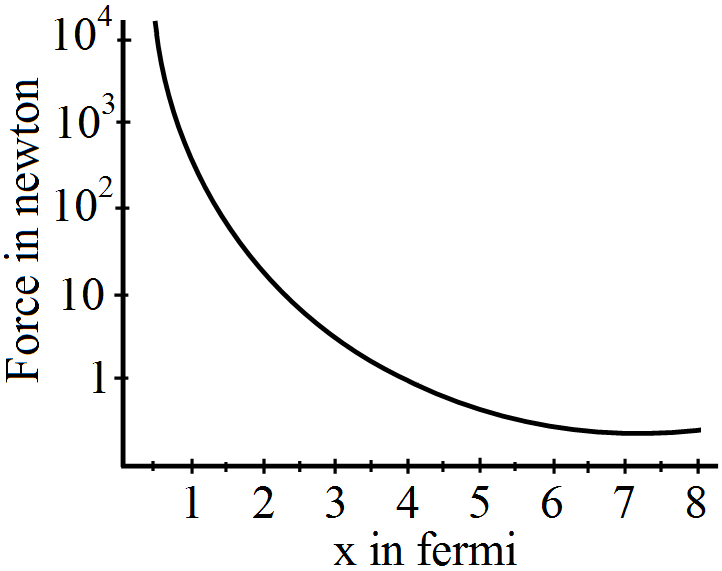

Suppose the magnitude of Nuclear force between two protons varies with the distance between them as shown in figure. Estimate the ratio "Nuclear force Coulomb force" for:
  1. $x = 8fm$
  2. $x = 4fm$
  3. $x = 2fm$
  4. $x = 1fm (1fm = 10^{-15}m). $
View full solution
A body builder exerts a force of 150N against a bullworker and compresses it by 20cm. Calculate the spring constant of the spring in the bullworker.
View full solution
A monkey is sitting on a tree limb. The limb exerts a normal force of 48N and a frictional force of 20N. Find the magnitude of the total force exerted by the limb on the monkey.
View full solution
The force with which the earth attracts an object is called the weight of the object. Calculate the weight of the moon from the following data: The universal constant of gravitation $G = 6.67 \times 10^{-11}N-m^2/kg^2$, mass of the moon $= 7.36 \times 10^{22}kg$, mass of the earth $= 6 \times 10^{24}kg$ and the distance between the earth and the moon $= 3.8 \times 10^5\ km.$
View full solution

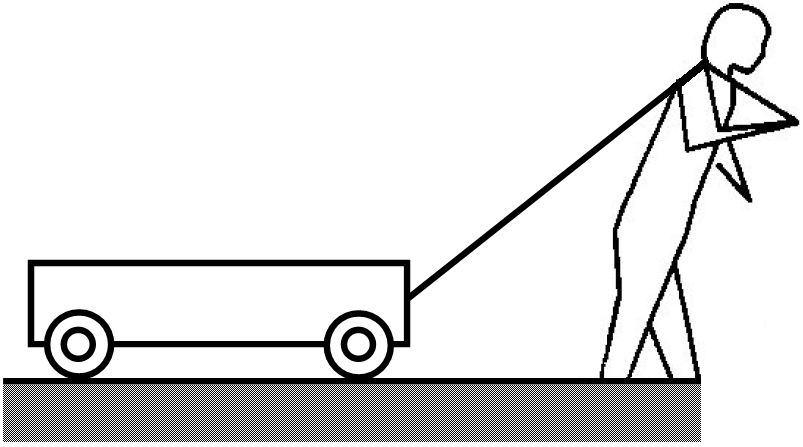

Figure shows a boy pulling a wagon on a road. List as many forces as you can which are relevant with this figure. Find the pairs of forces connected by Newton's third law of motion.
View full solution
Q 123 Marks Question3 Marks
The geostationary orbit of the earth is at a distance of about $36000\ km$ from the earth's surface. Find the weight of a $120\ kg $ equipment placed in a geostationary satellite. The radius of the earth is $6400\ km.$
View full solution
Q 133 Marks Question3 Marks
The gravitational force acting on a particle of $1g$ due to a similar particle is equal to $6.67 \times 10^{-17}N$. Calculate the separation between the particles.
View full solution
Q 143 Marks Question3 Marks
When you hold a pen and write on your notebook, what kind of force is exerted by you on the pen? By the pen on the notebook? By you on the notebook?
View full solution
Q 163 Marks Question3 Marks
The average separation between the proton and the electron in a hydrogen atom in ground state is $5.3 \times 10^{-11} m.$
  1. Calculate the Coulomb force between them at this separation.
  2. When the atom goes into its first excited state the average separation between the proton and the electron increases to four times its value in the ground state. What is the Coulomb force in this state?
View full solution
A satellite is projected vertically upwards from an earth station. At what height above the earth's surface will the force on the satellite due to the earth be reduced to half its value at the earth station? (Radius of the earth is 6400km.)
View full solution
Two charged particles placed at a separation of 20cm exert 20N of Coulomb force on each other. What will be the force if the separation is increased to 25cm?
View full solution
Two spherical bodies, each of mass 50kg, are placed at a separation of 20cm. Equal charges are placed on the bodies and it is found that the force of Coulomb repulsion equals the gravitational attraction in magnitude. Find the magnitude of the charge placed on either body.
View full solution
