A car is negotiating a curved road of radius $R$. The road is banked at an angle $\theta .$ The coefficient of friction between the tyres of the car and the road is $\mu _s.$ The maximum safe velocity on this road is
NEET 2016, Difficult
Download our app for free and get started

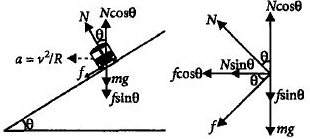

For vertical equilibrium on the road,
$N \cos \theta=m g+f \sin \theta$
$m g=N \cos \theta-f \sin \theta$
Centripetal force for safeturning,
$N \sin \theta+f \cos \theta=\frac{m v^2}{R}$
From eqns. $(i)$ and $(ii)$, we get
$\frac{v^2}{R g}=\frac{N \sin \theta+f \cos \theta}{N \cos \theta-f \sin \theta}$
$\Rightarrow \frac{v_{\max }^2}{R g} =\frac{N \sin \theta+\mu_s N \cos \theta}{N \cos \theta-\mu_s N \sin \theta}$
$v_{\max } =\sqrt{R g\left(\frac{\mu_s+\tan \theta}{1-\mu_s \tan \theta}\right)}$
$N \cos \theta=m g+f \sin \theta$
$m g=N \cos \theta-f \sin \theta$
Centripetal force for safeturning,
$N \sin \theta+f \cos \theta=\frac{m v^2}{R}$
From eqns. $(i)$ and $(ii)$, we get
$\frac{v^2}{R g}=\frac{N \sin \theta+f \cos \theta}{N \cos \theta-f \sin \theta}$
$\Rightarrow \frac{v_{\max }^2}{R g} =\frac{N \sin \theta+\mu_s N \cos \theta}{N \cos \theta-\mu_s N \sin \theta}$
$v_{\max } =\sqrt{R g\left(\frac{\mu_s+\tan \theta}{1-\mu_s \tan \theta}\right)}$
