A car is negotiating a curved road of radius R. The road is banked at an angle theta . The coefficient of friction between the

Q: A car is negotiating a curved road of radius $R$. The road is banked at an angle $\theta .$ The coefficient of friction between the tyres of the car and the road is $\mu _s.$ The maximum safe velocity on this road is

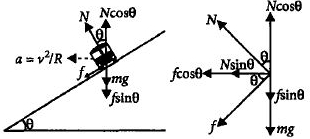

a $\begin{array}{l} For\,vertical\,equilibrium\,on\,the\,road,\\ N\cos \theta = mg + f\sin \theta \\ mg = N\cos \theta - f\sin \theta \,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,...\left( i \right)\\ Centripetal\,force\,for\,safe\,turning\,,\\ \,\,\,\,\,\,\,\,\,\,\,\,\,\,\,N\sin \theta + f\cos \theta = \frac{{m{v^2}}}{R}\,\,\,\,\,\,...\left( {ii} \right)\\ From\,eqns.\,\left( i \right)\,and\,\left( {ii} \right),\,we\,get\\ \,\,\,\,\,\,\,\,\,\,\,\frac{{{v^2}}}{{Rg}} = \frac{{N\sin \theta + f\cos \theta }}{{N\cos \theta - f\sin \theta }} \end{array}$ $\begin{array}{l} \Rightarrow \,\frac{{{v^2}_{\max }}}{{Rg}} = \frac{{N\sin \theta + {\mu _s}N\cos \theta }}{{N\cos \theta - {\mu _s}N\sin \theta }}\\ \,\,\,\,\,\,{v_{\max }} = \sqrt {Rg\left( {\frac{{{\mu _s} + \tan \theta }}{{1 - {\mu _s}\tan \theta }}} \right)} \end{array}$

SECTION - A [PHYSICS - MCQ]

GSEB - English Medium

A car is negotiating a curved road of radius $R$. The road is banked at an angle $\theta .$ The coefficient of friction between the tyres of the car and the road is $\mu _s.$ The maximum safe velocity on this road is

A$\sqrt {gR\frac{{{\mu _s} + tan\theta }}{{1 - {\mu _s}tan\theta }}} \;\;\;\;$
B$\;\sqrt {\frac{g}{R}\frac{{{\mu _s} + tan\theta }}{{1 - {\mu _s}tan\theta }}} $
C$\;\frac{g}{{{R^2}}}\frac{{{\mu _s} + tan\theta }}{{1 - {\mu _s}tan\theta }}$
D$\;\sqrt {g{R^2}\frac{{{\mu _s} + tan\theta }}{{1 - {\mu _s}tan\theta }}} $

NEET 2016, Diffcult

STD 11 Science
NEET
STD 11 - 4.2. friction
Physics

Download our app
and get started for free

Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*

Download App

Similar Questions

1
A chain of length $L$ rests on a rough table. If $\mu $ be the coefficient of friction, the maximum friction of the chain that can hang over the table will be
View Solution
2
Find the minimum value of $m$ that should placed on $20\, kg$, so that system remain at rest ........ $kg$
View Solution
3
A bag is gently dropped on a conveyor belt moving at a speed of $2\,m / s$. The coefficient of friction between the conveyor belt and bag is $0.4$ Initially, the bag slips on the belt before it stops due to friction. The distance travelled by the bag on the belt during slipping motion is $.....m$ [Take $g=10\,m / s ^{-2}$ ]
View Solution
4
A box is placed on an inclined plane and has to be pushed down. The angle of inclination is
View Solution
5
If force $F$ is increasing with time and at $t = 0 , F = 0$ where will slipping first start?
View Solution
6
The force required just to move a body up an inclined plane is double the force required just to prevent the body sliding down. If the coefficient of friction is $0.25$, the angle of inclination of the plane is ...... $^o$
View Solution
7
A cyclist on a level road takes a sharp circular turn of radius $3 \;m \;\left( g =10 \;ms ^{-2}\right)$. If the coefficient of static friction between the cycle tyres and the road is $0.2$, at which of the following speeds will the cyclist not skid while taking the turn?
View Solution
8
In figure, two blocks $M$ and $m$ are tied together with an inextensible and light string. The mass $M$ is placed on a rough horizontal surface with coefficient of friction $\mu$ and the mass $m$ is hanging vertically against a smooth vertical wall. The pulley is frictionless. Imagine a situation in which the given arrangement is placed inside an elevator that can move only in the vertical direction and compare the situation with the case when it is placed on the ground. When the elevator accelerates downward with $a_0( < g)$, then
View Solution
9
As shown in the figure, two strings of length $l$ each are attached with a vertical axis $AB$ of length $l$. Strings are $AC$ and $BC$. At point $C$ a point mass m is attached. Mass rotates about axis with angular velocity. Tensions in $AB$ and $BC$ are $T_1$ and $T_2$ respectively. Choose the $CORRECT$ alternative :-
View Solution
10
A small mass $'m'$ rests at the edge of a horizontal disc of radius $'R'$ . The coefficient of static friction between mass and the disc is $\mu $ . The disc is rotated about its axis at an angular velocity such that the mass slides off the disc and lands on the floor $'h'$ meters below. What was its horizontal distance of travel from the point it left the disc?
View Solution
