Laws of Motion — Physics STD 11 Science — Question

Gujarat BoardEnglish MediumSTD 11 SciencePhysicsLaws of Motion5 Marks
Question
A disc revolves with a speed of $33\frac{1}{3}\text{rev/min},$ and has a radius of $15cm$. Two coins are placed at $4cm$ and $14cm$ away from the centre of the record. If the co-efficient of friction between the coins and the record is $0.15$, which of the coins will revolve with the record?
✓

Answer

Coin placed at 4cm from the centre Mass of each coin = m Radius of the disc, $\text{r}=15\text{m}=0.15\text{m}$ Frequency of revolution, $\text{v}=\frac{100}{3}\text{rev/min}=\frac{100}{3\times60}=\frac{5}{9}\text{rev/s}$ Coefficient of friction, $\mu=0.15$ In the given situation, the coin having a force of friction greater than or equal to the centripetal force provided by the rotation of the disc will revolve with the disc. If this is not the case, then the coin will slip from the disc. Coin placed at 4cm: Radius of revolution, $\text{r}'=4\text{cm}=0.04\text{m}$ Angular frequency, $\omega=2\pi\text{v}=2\times\frac{22}{7}\times\frac{5}{9}=3.49\text{s}^{-1}$ Frictional force, $\text{f}=\mu\text{mg}=0.15\times\text{m}=10=1.5\text{mN}$ Centripetal force on the coin: $\text{F}_\text{cent}=\text{mr},\omega^2$
$=\text{}\text{m}\times0.04\times(3.49)^2$
$=0.49\text{mN}$ Since $f > F_{cent}, the coin will revolve along with the record. Coin placed at 14cm: Radius, $\text{r"}=14\text{cm}=0.14\text{m}$ Angular frequency, $\omega=3.49\text{s}^{-1}$ Frictional force, $\text{f}'=1.5\text{mN}$ Centripetal force is given as: $\text{F}_\text{cent}=\text{mr},\omega^2$
$=\text{}\text{m}\times0.14\times(3.49)^2$
$=1.7\text{mN}$ Since $f < F_{cent}$, the coin will slip from the surface of the record.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Laws of Motion→Laws of Motion — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

Define degrees of freedom. How will you account for the five degrees of freedom in a diatomic molecule? Using the idea of equi-partition of energy, find the value of $\gamma$ for the same.
→
Find $\gamma$ for polyatomic gas and hence determine its value for a triatomic gas in which the molecules are linearly arranged.
→
Gives the x-t plot of a particle executing one-dimensional simple harmonic motion. (You will learn about this motion in more detail in Chapter 14). Give the signs of position, velocity and acceleration variables of the particle at t = 0.3 s, 1.2 s, – 1.2 s.
→
1 litre of an ideal gas $(\gamma=1.5)$ at $300K$ is suddenly compressed to half its original volume.
  1. Find the ratio of the final pressure to the initial pressure.
  2. If the original pressure is $100kPa$, find the work done by the gas in the process.
  3. What is the change in internal energy?
  4. What is the final temperature?
  5. The gas is now cooled to $300K$ keeping its pressure constant. Calculate the work done during the process.
  6. The gas is now expanded isothermally to achieve its original volume of $1$ litre. Calculate the work done by the gas.
  7. Calculate the total work done in the cycle.
→
Consider the situation of the previous problem. Consider the fastest electron emitted parallel to the large metal plate. Find the displacement of this electron parallel to its initial velocity before it strikes the large metal plate.
→
The spectral energy distribution of the sun has a maximum at $4753\mathring{\text{ A}}$4753 Å. If temperature of sun is $6050\mathring{\text{ K }}.$ what is the temperature of a star for which this maximum wavelength is at $9506\mathring{\text{ A }}$
→
Two particles A and B having charges q and 2q respectively are placed on a smooth table with a separation d. A third particle C is to be clamped on the table in such a way that the particles A and B remain at rest on the table under electrical forces. What should be the charge on C and where should it be clamped?
→

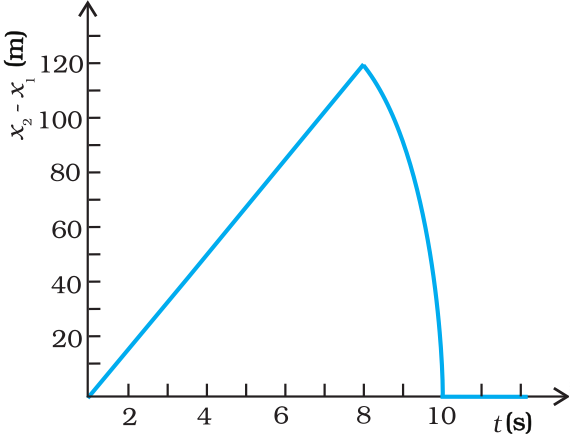

Two stones are thrown up simultaneously from the edge of a cliff $200m$ high with initial speeds of $15m s^{–1}$ and $30m s^{–1}$. Verify that the graph shown in correctly represents the time variation of the relative position of the second stone with respect to the first. Neglect air resistance and assume that the stones do not rebound after hitting the ground. Take $g = 10m s^{–2}$. Give the equations for the linear and curved parts of the plot.
→
The system containing the rails and the wire of the previous problem is kept vertically in a uniform horizontal magnetic field B that is perpendicular to the plane of the rails (figure). It is found that the wire stays in equilibrium. If the wire ab is replaced by another wire of double its mass, how long will it take in falling through a distance equal to its length?
→
A helicopter lifts a $72kg$ astronaut $15m$ vertically from the ocean by means of a cable. The acceleration of the astronaut is $\frac{\text{g}}{10}$.

How much work is done on the astronaut by:
  1. The force from the helicopter and
  2. The gravitational force on him?
  3. What are the kinetic energy and
  4. The speed of the astronaut just before he reaches the helicopter?(Take, $g = 10ms^{‑2}$)
→
