A parallel plate capacitor having a separation between the plates $d$ , plate area $A$ and material with dielectric constant $K$ has capacitance $C_0$. Now one-third of the material is replaced by another material with dielectric constant $2K$, so that effectively there are two capacitors one with area $\frac{1}{3}\,A$ , dielectric constant $2K$ and another with area $\frac{2}{3}\,A$ and dielectric constant $K$. If the capacitance of this new capacitor is $C$ then $\frac{C}{{{C_0}}}$ is
JEE MAIN 2013, Diffcult
Download our app for free and get started
$C_{0}=\frac{k \epsilon_{0} A}{d}$
$C=\frac{k \epsilon_{0} 2}{3 d}+\frac{2 k \epsilon_{0} A}{3 d}=\frac{4}{3} \frac{k \epsilon_{0} A}{d}$
$\therefore$ $\frac{{\text{c}}}{{{{\text{C}}_0}}} = \frac{{\frac{{4k{\varepsilon _0}A}}{{3d}}}}{{\frac{{k{\varepsilon _0}A}}{d}}} = \frac{4}{3}$
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1Electric potential at a point $P$ due to a point charge of $5 \times 10^{-9}\; C$ is $50 \;V$. The distance of $P$ from the point charge is ......... $cm$View Solution
(Assume, $\frac{1}{4 \pi \varepsilon_0}=9 \times 10^{+9}\; Nm ^2 C ^{-2}$)
- 2Five capacitors together with their capacitances are shown in the adjoining figure. The potential difference between the points $A$ and $B$ is $60\, volt$. The equivalent capacitance between the point $A$ and $B$ and charge on capacitor $5 \mu F$ will be respectively:-View Solution
- 3Find the equivalent capacitance between $A$ and $B$.......$\mu f$View Solution
- 4Three charged particles having charges $q,-2 q$ and $q$ are placed in a line at points $(-a, 0),(0,0)$ and $(a, 0)$ respectively. The expression for electric potential at $P(r, 0)$ for $r \gg a$ is ...............View Solution
- 5A capacitor of $4\, \mu F$ is connected to a $15\, V$ supply through $1$ mega ohm resistance. The time taken by the capacitor to charge upto $63.2\%$ of its final charge will be......$s$View Solution

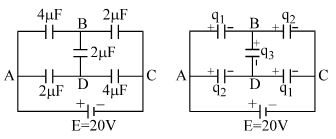

- 6The value of charge $q_1, q_2$ and $q_3$ as shown in the figure areView Solution
