Human Eye and Colourful World — Science STD 10 — Question

CBSE BoardEnglish MediumSTD 10ScienceHuman Eye and Colourful World4 Marks
Question
A person is suffering from hypermetropia (long sightedness). It is a defect in which a human eye can see far off object clearly, but is unable to see nearby object distinctly. The near point of the person is $1.5 m$. Assume that the near point of the normal eye is $25 cm$.

(i) What type of lens should be used in his spectacles?
(ii) What should be the focal length of the lens he used?
(iii) What will be the potver of the lens?
or
(iv) Write one possible cause of this defect.
✓

Answer

(i) Convex lens is to be used in his spectacles.
(ii) Here,
\[\begin{aligned}d & =150 cm \\D & =25 cm \\v & =-150 cm \\u & =-25 cm\end{aligned}\]
Using lens formula,
\[\begin{aligned}\frac{1}{f} & =\frac{1}{v}-\frac{1}{u} \\& =\frac{1}{-150 cm }-\frac{1}{-25 cm } \\& =\frac{-1+6}{150 cm }=\frac{5}{150 cm } \\f & =30 cm\end{aligned}\]
(iii) Power of the lens,
\[P=\frac{100}{f} D =\frac{100}{30} D =3.3 D\]
or
(iv) Increase in focal length of the eye lens, when the eye is fully relaxed is the cause of hypermetropia.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "case /data -based [Phy-4M]" from Human Eye and Colourful World→Human Eye and Colourful World — all question types→Science STD 10 question papers→CBSE Board STD 10 question papers→CBSE Board question paper generator→

Similar questions

2. Which of these statements is true for the lines of a magnetic ield?
Circle ‘Yes’ or ‘No’ for the correct response.

Is the statement true?

Yes or No

Lines of a magnetic ield can sometimes cross each other.

Yes/No

Lines of a magnetic ield emerge from the north pole and meet at the south pole.

Yes/No

Lines of a magnetic ield can sometimes change direction.

Yes/No

→
→
A near sighted person wears eye glass with power of $-5.0$ D for distant vision. Soon, he started having difficulties in viewing nearby objects also. His doctor prescribes a correction of $+1.5 D$ in near vision section of his bi-focal, which is measured relative to main part of the lens.

(i) Find the focal length of his distant viewing part of lens.
(ii) Find the focal length of near vision section of the lens.
(iii) What type of lens is to be used in this spectacles for near vision?
or
(iv) What is the reason of hypermetropia?
→
Read the following and answer any three questions from (i) to (iv).

The electrical energy consumed by an electrical appliance is given by the product of its power rating and the time for which it is used. The SI unit of electrical energy is Joule. Actually, Joule represents a very small quantity of energy, and therefore it is inconvenient to use where a large quantity of energy is involved. So for commercial purposes we use a bigger unit of electrical energy which is called kilowatt-hour. 1 kilowatt-hour is equal to 3.6 × 106 joules of electrical energy.

  1. The energy dissipated by the heater is E. When the time of operating the heater is doubled, the energy dissipated will?

  2. The power of a lamp is 60W. The energy consumed in 1 minute will?

  3. The electrical refrigerator rated 400W operates 8 hours a day. The cost of electrical energy is ₹ 5 per kWh. Find the cost of running the refrigerator for one day?
                                    OR
  4. Calculate the energy transformed by a 5A current flowing through a resistor of $2\Omega$ for 30 minutes?
→
When electric current flows in a purely resistive circuit electrical energy gets fully converted into heat energy. The amount of heat produced (H) in the circuit is found to be directly proportional to (i) the square of current $\mathrm{I}^{2}$
(ii) the resistance $(R)$ of the conductor and (iii) the time $(t)$ for which current flows. In other words $H=I^{2} R t$.
Electrical devices such an electric fuse, electric heater, electric iron etc. are all based on this effect called heating effect of electric current.
a. List two properties of heating elements.
b. List two properties of electric fuse.
c. Name the principle on which an electric fuse works. Explain how a fuse wire is capable of saving electrical appliances from getting damaged due to accidently produced high currents.
OR
The power of an electric heater is 1100 W . If the potential difference between the two terminals of the heater is 220 V , find the current flowing in the circuit. What will happen to an electric fuse of rating 5 A connected in this circuit?
→
Use the data in Table 12.2 to answer the following–
  1. Which among iron and mercury is a better conductor?
  2. Which matcrial is the bestconductor?
Electrical resistivity of some substances at 20°C
-MeterialResistivity ($\Omega$m)
ConductorsSilver1.60× 10-8
Copper1.60× 10-8
Aluminium2.63 × 10-8
Tungsten5.20 × 10-8
Nickel6.84 × 10-8
Iron10.0 × 10-8
Chromoium12.9 × 10-8
Mercury94.0 × 10-8
Manganese1.84 × 10-6
Constant (alloy of Cu, Mn and Ni)49× 10-6
AlloysManganin (alloy of Cu, Mn and Ni)44× 10-6
Nichrome (alloy of Ni, Cr, MN and Fe)100 × 10-6
Glass1010- 1014
InsulatorsHard rubber1013 - 1016
Ebonite1015- 1017
Diamond1012- 1013
Paper (dry)1012
→
Mr. Rakesh was helping her daughter Aruna at home understanding about the basics of reflection of light. He found the simplest way to convey the role of curved mirrors using stainless steel teaspoon. Aruna got surprised to know that virtual image is that which can be seen but cannot be obtained on the screen. Mr. Rakesh then explained the formation of image using Ray diagrams.
(i) What do you mean by reflection of light?
(ii) The angle between incident ray and reflected ray is $60^{\circ}$. What is the value of angle of incidence?
(iii) A ray of light is incident on a plane mirror at an angle of $30^{\circ}$. what is the angle of reflection?
or
(iv) What happens to a light ray that is incident normally on a surface?
→
If two or more resistances are connected in such a way that the same potential difference gets applied to each of them, then they are said to be connected in parallel.
The current flowing through the two resistances in parallel is, however, not the same. When we have two or more resistances joined in parallel to one another, then the same current gets additional paths to flow and the overall resistance decreases.
i. Three resistances, $2 \Omega, 6 \Omega$ and $8 \Omega$ are connected in parallel, then what will be the equivalent resistance?
ii. A wire of resistance $12 \Omega$ is cut into three equal pieces and then twisted their ends together, then what will be the equivalent resistance?
iii. Three resistances are connected as shown. Calculate the equivalent resistance between $A$ and $B$
OR
Find the current in each resistance.
→
The lens of the eye does little of the bending of the light rays. Most of the refraction is done at the front surface of the cornea which also acts as a protective covering. The lens acts as a fine adjustment for focussing at different distances. This is accomplished by the ciliary muscle, which change the curvature of the lens so that its focal length is changed. To focus on a distant object, the muscles are relaxed and the lens is thin and parallel rays focus at the focal point (on the retina). To focus on a nearby object, the muscles contract, causing the centre of the lens to be thicker, thus shortening the focal length so that images of nearby objects can be focused on the retina, behind the focal point. This focusing adjustment is called accommodation.
The closest distance at which the eye can focus clearly is called the near point of the eye. A given person's far point is the farthest distance at which an object can be seen clearly. To check your own near point, place this book close to your eye and slowly move it away until the type is sharp.
A large part of the population have eyes that do not accommodate within the normal range of $25 cm$ to infinity, or have some other defect. Two common defects are near-sightedness and far-sightedness. Both can be corrected to a large extent with lenses-either eyeglasses or contact lenses.
(i) The ciliary muscle muscles of a normal eye are in their (i). most relaxed (ii). most contracted state. In which of the two cases is the focal length of the eye-lens more?
(ii) What is the least distinct of vision of young man?
(iii) What is persistence of vision?
or
(iv) What is meant by power of accommodation of the eye?
→
Leena creates an electric circuit with three resistors R1, R2 and R3.

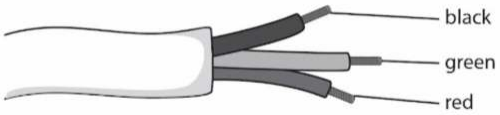

9. Which wire should be connected to the negative terminal of a socket?
→
