A wire of resistance $10$ $\Omega$ is bent to form a circle. $P$ and $Q$ are points on the circumference of the circle dividing it into a quadrant and are connected to a Battery of $3\, V$ and internal resistance $1$ $\Omega$ as shown in the figure. The currents in the two parts of the circle are
  • A$\frac{6}{23}\,A$ and $\frac{18}{23}\,A$
  • B$\frac{5}{{26}}A$ and $\frac{{15}}{{26}}A$
  • C$\frac{4}{{25}}A$ and $\frac{{12}}{{25}}A$
  • D$\frac{3}{{25}}A$ and $\frac{9}{{25}}A$
Medium
art

Download our app
and get started for free

Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*

Similar Questions

  • 1
    In an experiment to measure the internal resistance of a cell by potentiometer, it is found that the balance point is at a length of $2\,m$ when the cell is shunted by a $5\,\Omega $ resistance; and is at a length of $3\,m$ when the cell is shunted by a $10\,\Omega $ resistance. The internal resistance of the cell is, then ................ $\Omega $
    View Solution
  • 2
    What will happen when a $40\, watt$, $220\, volt$ lamp and $100\, watt$, $220\, volt$ lamp are connected in series across $40\, volt$ supply
    View Solution
  • 3
    In the circuit shown, the reading of ammeter when switch $S$ is open and when switch $S$ is closed respectively are
    View Solution
  • 4
    Two wires of the same material are given. The first wire is twice as long as the second and has twice the diameter of the second. The resistance of the first will be
    View Solution
  • 5

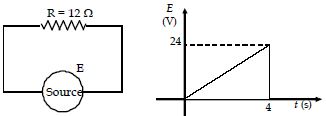

    A resistance $R = 12\, \Omega$ is connected across a source of emf as shown in the figure . Its $emf$ changes with time as shown in the graph . What is the heat developed in the resistance in the first four seconds ? ............. $J$
