An object of height 2.5cm is placed at a distance of 15cm from the optical centre ‘O' of a convex lens of focal length 10cm. Draw a ray diagram to find the position and size of the image formed. Mark optical centre ‘O', principal focus F and height of the image on the diagram.
CBSE OUTSIDE DELHI - SET 1 2016
Download our app for free and get started

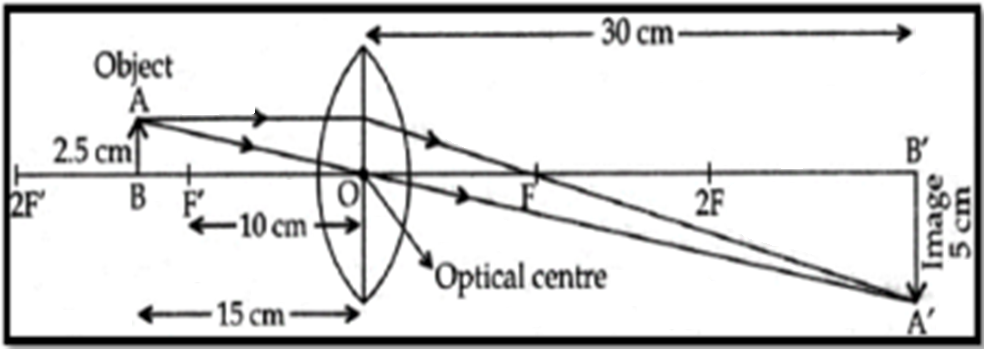

The ray diagram is as follows:
The size of the image formed is 5cm beyond 2F.
The size of the image formed is 5cm beyond 2F.
