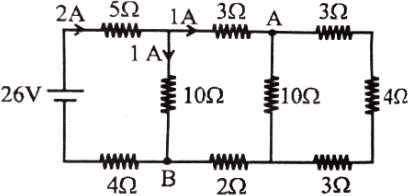

Consider the circuit shown in the figure
  • Athe current in the $5\, \Omega$ resistor is $2\, A$
  • Bthe current in the $5\, \Omega$ resistor is $1\, A$
  • Cthe potential difference $V_A - V_B$ is $10\, V$
  • Dthe potential difference $V_A- V_B$ is $5\, V$
Medium
