Find equivalent capacitance between $A$ and $B$
Medium
Download our app for free and get started

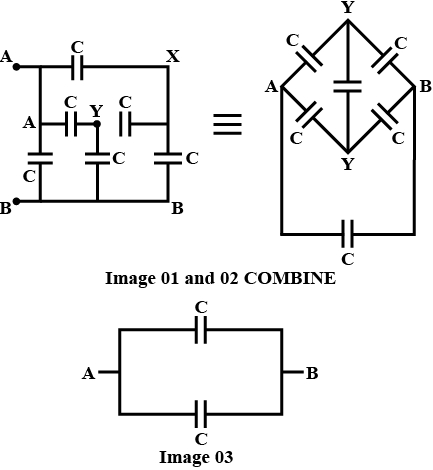

For IMAGE $O1$ AND $O2:$
[Loops $A X B Y$ forms wheat stone bridge]
so, effective capacitance will be for the bridge $C$
In IMAGE $O3$ the parallel combination
$C^{\prime}=C+C=2 C$
