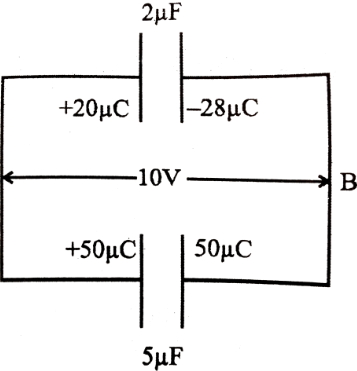

Find heat produced in the capacitors on closing the switch $S$
Diffcult
Download our app for free and get started
since there is no. $P . D .$ so no distribution of charge. so heat produced will be zero.
$\mathrm{H}=0$
